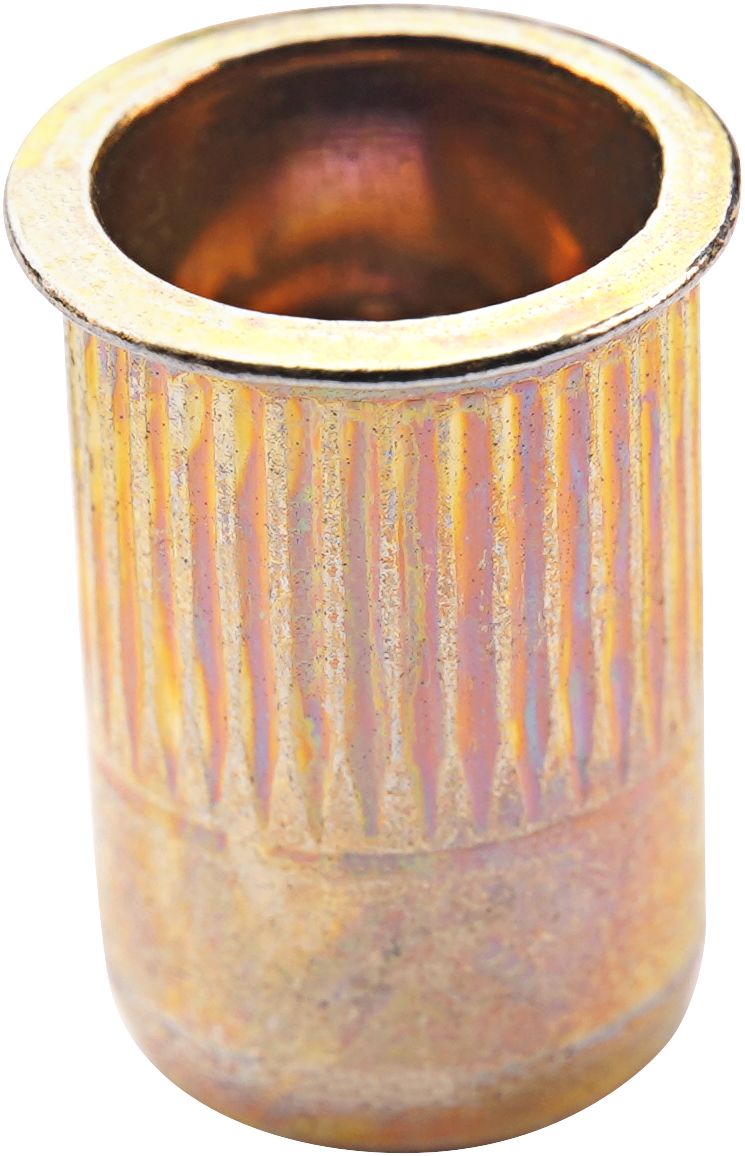

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Standard Flange, Coarse Thread, 1/4-20, 0.027 to 0.165" Grip
(Pack of
25)
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
General Maintenance
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-95
Frequently Bought Together
Blind Rivet Nut Insert Thin Wall M5-0.8
Couldn't load pickup availability
Diamond Grip II Threaded Insert #6-32
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall #10-24
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 25mm
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Replacement Head Set for SSG Tool 1/4-20
Couldn't load pickup availability
Replacement Mandrel for M4/M5 Tool 10-24
Couldn't load pickup availability
Replacement Head Set for M4/M5 Tool 5/16-18
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
General Maintenance
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 94734 |
|---|---|
| Diameter | 1/4 " |
| Thread Pitch | 20 |
| Grip Range | 0.027 – 0.165 " |
| Flange Type | Standard Flange |
| Hole Size | 0.391 " |
| Pilot Drill Size | 25/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
