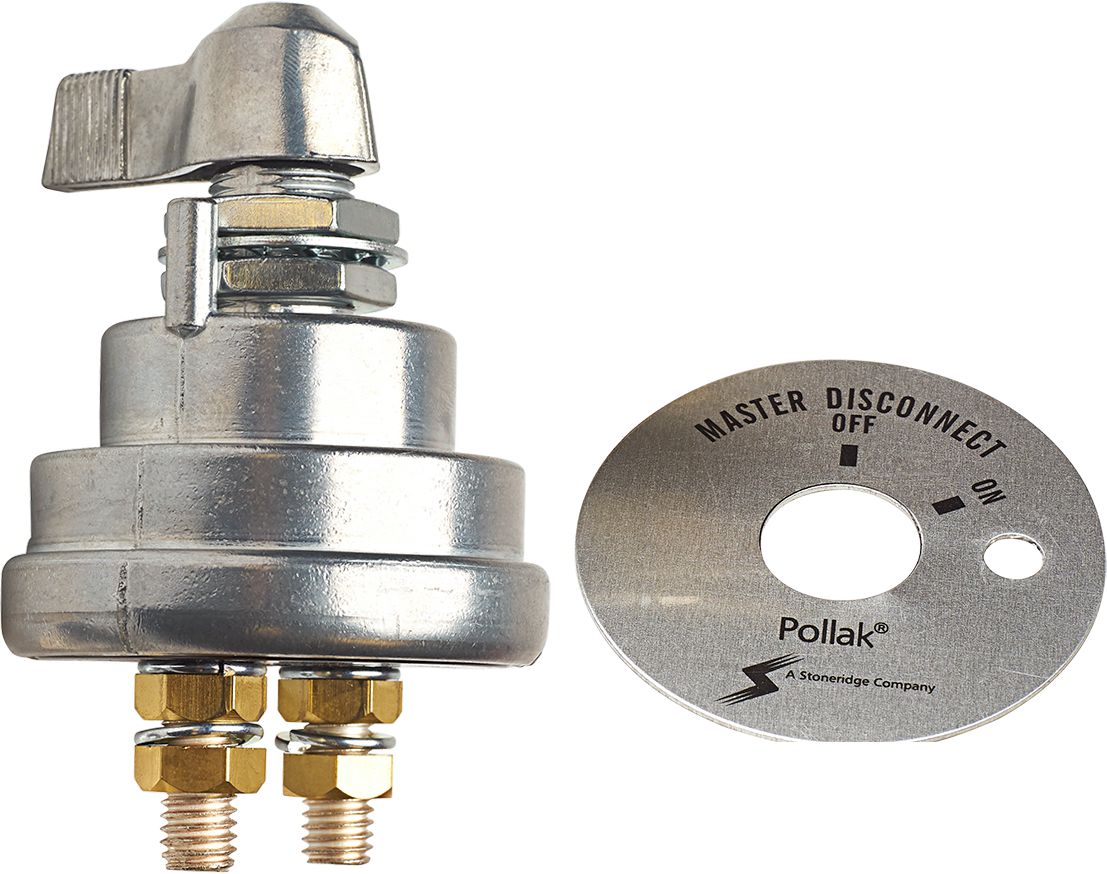

Disconnect Switch, Single Pole Single Throw, 36 Volts DC, 2x 3/8" Copper Studs Terminal, On/Off
(Pack of
1)
SKU:57514 Item#: 57514
• Disconnects battery circuit
• Single pole throw (on – off)
• Mounting stem: 3/4" dia.
• Faceplate for switches with indexing pins is available
• UL approved
• Added protection for autos, boats and fire equipment
Couldn't load pickup availability
Catalog page#: 2-86
Frequently Bought Together
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 3CP
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Toggle Switch SPDT 30A 12V On-Off-On
Couldn't load pickup availability
Toggle Switch SPST 20A 12V Off-White/On-Red
Couldn't load pickup availability
Rotary Switch SPDT 12VDC Momentary On/Off
Couldn't load pickup availability
Industrial Duty SAF-T Connect Plug 15A 125V
Couldn't load pickup availability
SAF-T Ground and Continuity Monitor Plug 15A 125V
Couldn't load pickup availability
Industrial Duty Locking Connector 20A 125V
Couldn't load pickup availability
Product Description
• Disconnects battery circuit• Single pole throw (on – off)
• Mounting stem: 3/4" dia.
• Faceplate for switches with indexing pins is available
• UL approved
• Added protection for autos, boats and fire equipment
Technical Specifications
| Item#: | 57514 |
|---|---|
| Style | Disconnect Switches |
| Terminal Connection | Two 3/8" Copper Studs |
| Electrical Rating Amps at Given Voltage (DC Current) | Continuous: 175A at 6 to 36V Intermittent: 1,000A at 6 to 36V 20 Seconds On, 5 Minutes Off |
| Material | Die Cast Case and Lever |
| Approvals | UL |
| Type | With Indexing Post-For Battery Circuit Only |
| UNSPSC #: | 39122200 |
| TAA Compliant: | No |
| Weight: | 0.87 lb |
