Home Air Brake Standard DOT Compression Connector Female Brass 3/8 x 1/4"
Air Brake Standard

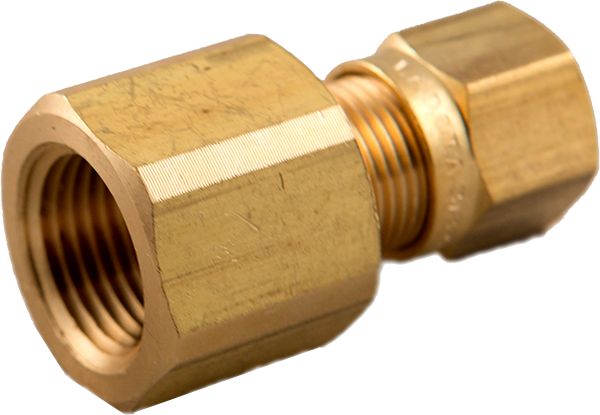

DOT Air Brake Compression Connector for Nylon Tubing, Female, Brass, 3/8" x 1/4-18, Tube x Pipe
(Pack of 5)

Item#: 1511547

Lawson

• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Read More
Check Availability
Usually Ships: Today
While Supplies Last

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Parker DOT Compression - Nylon Compression Sleeve 3/8

Item#: 84322P

Parker DOT Compression - Nylon Male Branch Tee 1/2x1/2x3/8

Item#: 84302P

Parker DOT Compression - Nylon Female Elbow 90 Degrees 3/8x1/4

Item#: 84290P

DOT Swivel Elbow Male 45° Brass 1/4 x 1/4-18

Item#: 28970

DOT Compression Connector Male Brass 1/2 x 3/8"

Item#: 84271

Ball Check Grease Fitting Straight

Item#: 6202

Silicone Coolant/Heater Hose Clamp SS 1-1/16 to 2"

Item#: KT14028

Hose Clamp 304 SS 11/16 to 1-1/2"

Item#: 86727

Silicone Coolant/Heater Hose Clamp 13/16 to 1-3/4"

Item#: KT14027

DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18

Item#: 27202

Hose Clamp 304 SS 3/4 to 1-3/4"

Item#: 86728

Air Conditioning Slim Line Sealing Washer

Item#: KT14463

Front Bumper Specialty Nut Steel M4.2-1.41

Item#: 1420584

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Wheel Opening Drive Rivet Aluminum 5/32"

Item#: P13787

Gallon Bottle Pump 1fl.oz

Item#: DD1025

Acid Brush 3/8 x 5-3/4"

Item#: 87459

Replacement Broom Handle with Threaded End

Item#: 95387

Gallon Bottle Pump 1fl.oz

Item#: DD1025

Acid Brush 3/8 x 5-3/4"

Item#: 87459

Replacement Broom Handle with Threaded End

Item#: 95387

Product Description

• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Technical Specifications

Item#: 1511547
Manufacturer Model #: 84261
Fitting Type Compression - Nylon Tubing
Style DOT
Material Brass
Configuration Female Connector
Connection Type A x B Tube x Pipe
Fitting Dimension A 3/8 "
Fitting Dimension B 1/4-18
Size 3/8X1/4
Type Compression
UNSPSC #: 25171700
TAA Compliant: No
Weight: 0.51 lb
