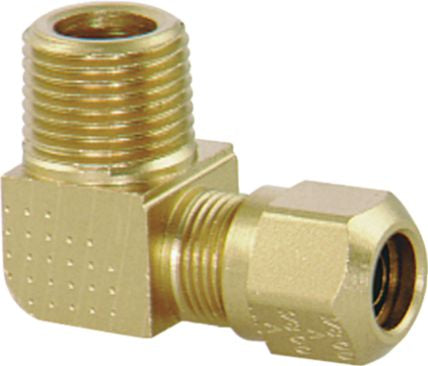

DOT Compression Elbow Male 90° Brass 5/8 x 3/4"
(Pack of
2.0)
Easily tackle piping challenges with a durable and reliable brass compression elbow. Designed to join pipes at a 90-degree angle, this PTC fitting provides a seamless solution for changing pipe direction, even in areas where soldering is impractical or unsafe. The compression system—using ferrules and nuts—ensures a secure, leak-resistant connection without the need for welding or soldering. Crafted from corrosion-resistant brass, it offers long-lasting strength and cost-effectiveness, making it an ideal choice for plumbers, contractors, and industrial applications involving water or fluid systems.
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Parker DOT Compression - Nylon Male Connector 1/4x1/4
Couldn't load pickup availability
DOT Compression Connector Female Brass 3/8 x 1/8"
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/4x1/4
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/2x1/2
Couldn't load pickup availability
Parker DOT Field Attachable - Spring Guard 3/8
Couldn't load pickup availability
Air Brake Compression Nut Brass 5/32"
Couldn't load pickup availability
Norma Torro European Hose Clamp 3/8 to 5/8"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Brake Washer Copper 25/64" ID 5/8" OD
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
Couldn't load pickup availability
Fuel Line Hose 3/8" ID x 25'
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Product Description
Easily tackle piping challenges with a durable and reliable brass compression elbow. Designed to join pipes at a 90-degree angle, this PTC fitting provides a seamless solution for changing pipe direction, even in areas where soldering is impractical or unsafe. The compression system—using ferrules and nuts—ensures a secure, leak-resistant connection without the need for welding or soldering. Crafted from corrosion-resistant brass, it offers long-lasting strength and cost-effectiveness, making it an ideal choice for plumbers, contractors, and industrial applications involving water or fluid systems.• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 96885 |
|---|---|
| Class | Air Brake Ftgs/Tubing/Accessories |
| Fitting Type | Compression - Nylon |
| Style | DOT |
| Material | Brass |
| Configuration | Male Elbow 90 Degrees |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 5/8 " |
| Fitting Dimension B | 3/4-14 |
| Size | 5/8TX3/4P |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 1.04 lb |
