Air Brake Standard

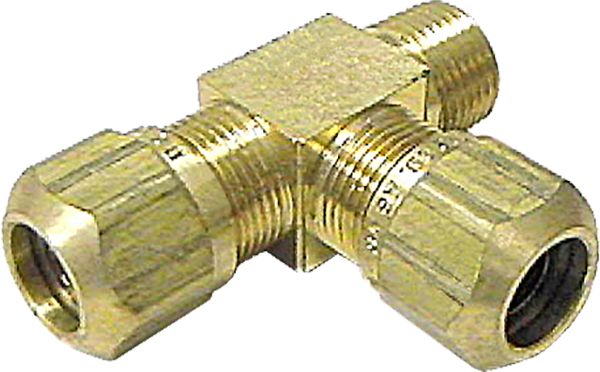

DOT Air Brake Compression Run Tee for Nylon Tubing, Male, Brass, 1/2" x 3/8-18 x 1/2", Tube x Pipe x Tube
(Pack of 5)

Item#: 1511575

Lawson

• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Read More
Check Availability
Usually Ships: Today
While Supplies Last

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


DOT Compression Union Brass 1/2"

Item#: 84255

DOT Compression Connector Male Brass 1/2 x 1/4"

Item#: 86584

DOT Compression Elbow Male 45° Brass 1/2 x 1/2"

Item#: 84314

DOT Connector Male Brass 1/2 x 1/2-14

Item#: 27184

DOT Compression Sleeve Brass 3/8"

Item#: 84322

DOT Elbow Male 90° Brass 5/8 x 1/2-14

Item#: 27191

DOT Union Brass 1/4 x 1/4"

Item#: 57499

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 57505

Air Conditioning Slim Line Sealing Washer

Item#: KT14463

Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"

Item#: P28920M01

Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"

Item#: P64102M01

FLEXAIR 3/8" I.D. x 50' air hose

Item#: 1585091

Inner Fender Shield Attaching Clip Nylon Black

Item#: P27685

Front Fender Liner Push-Type Retainer Nylon 20mm

Item#: P24252

Bumper Drive Rivet Plastic 10mm Hole

Item#: P85437

Universal Socket Set, SAE, 3/8" Drive, 8pc

Item#: DY89320200

9Pc Metric Mini Combination Wrench Set

Item#: DY89250420

Adjustable 4-Pos T-Handle 1/2 Drive

Item#: DY89310603

Universal Socket Set, SAE, 3/8" Drive, 8pc

Item#: DY89320200

9Pc Metric Mini Combination Wrench Set

Item#: DY89250420

Adjustable 4-Pos T-Handle 1/2 Drive

Item#: DY89310603

Product Description

• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Technical Specifications

Item#: 1511575
Manufacturer Model #: 84297
Fitting Type Compression - Nylon Tubing
Style DOT
Material Brass
Configuration Male Run Tee
Connection Type A x B x C Tube x Pipe x Tube
Fitting Dimension A 1/2 "
Fitting Dimension B 3/8-18
Fitting Dimension C 1/2 "
Size 1/2X3/8
Type Compression
UNSPSC #: 25171700
TAA Compliant: No
Weight: 1.41 lb
