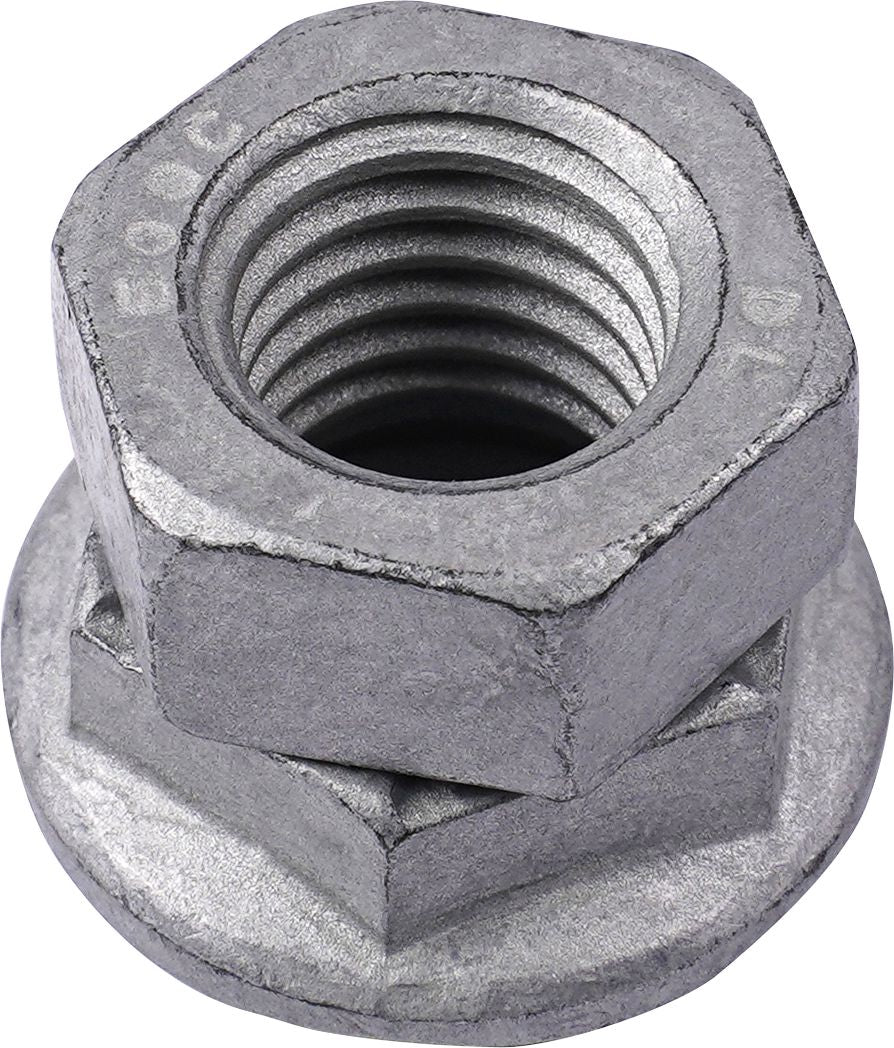

Dyna-Lock, Metric Locking Nut, Grade 10.9, Steel, Magni 565 Finish, Across Flats 24, M16X1.5
(Pack of
5)
SKU:DY50111600 Item#: DY50111600
• Consists of two components joined together to form one assembly
• Used in high stress, vibration-sensitive areas and in safety-critical applications
• Free-spinning with no thread interface
• Heat, chemical and corrosion resistant
• Coated with environmentally friendly Magni 565*
• Reusable and can be installed with standard equipment - no special tools required
• US DOT Federal Railroad Administration approved
* Magni 565 is a chrome free duplex fastener coating system that combines an inorganic zinc-rich basecoat with an aluminum-rich organic topcoat. This feature ensures repeatable torque/tension characteristics in assembly. Magni 565 provides superior product performance in fewer layers than comparable finishes. Black phosphate coating on 7/8''-9 USS only.
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 5/16"
$0.00
Couldn't load pickup availability
DIN 9021B Fender Washer Low Carbon Steel 18mm
$0.00
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M8-1.25
$0.00
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade A #12-24
$0.00
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 1-8
$0.00
Couldn't load pickup availability
Jam Nut with Nylon Insert Grade 2 7/16-14
$0.00
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
$0.00
Couldn't load pickup availability
Hex Flange Nut Grade 10 Steel M6-1
$0.00
Couldn't load pickup availability
Metric Machine Screw Nut, Stainless Steel, M6x1.0
$0.00
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/4-20
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/16-18
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon Red
$0.00
Couldn't load pickup availability
Rocker and Quarter Molding Retainer Plastic
$0.00
Couldn't load pickup availability
Wall Mount Dispenser for Hand Cleaner
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon Red
$0.00
Couldn't load pickup availability
Rocker and Quarter Molding Retainer Plastic
$0.00
Couldn't load pickup availability
Wall Mount Dispenser for Hand Cleaner
$0.00
Couldn't load pickup availability
Product Description
• Consists of two components joined together to form one assembly• Used in high stress, vibration-sensitive areas and in safety-critical applications
• Free-spinning with no thread interface
• Heat, chemical and corrosion resistant
• Coated with environmentally friendly Magni 565*
• Reusable and can be installed with standard equipment - no special tools required
• US DOT Federal Railroad Administration approved
* Magni 565 is a chrome free duplex fastener coating system that combines an inorganic zinc-rich basecoat with an aluminum-rich organic topcoat. This feature ensures repeatable torque/tension characteristics in assembly. Magni 565 provides superior product performance in fewer layers than comparable finishes. Black phosphate coating on 7/8''-9 USS only.
Technical Specifications
| Item#: | DY50111600 |
|---|---|
| Diameter | M16 |
| Thread Pitch | 1.5 mm |
| Grade | 10.9 |
| Finish | Magni 565 |
| Type | Dyna-Lock |
| Material | Carbon Steel |
| Thickness | 21 mm |
| Across Flats | 24 mm |
| Thread | Fine |
| Proof | 150,000 PSI |
| Quantity Per Package | 5.0000 |
| Hardness | 28-36 Rc |
| Flange Diameter | 32 mm |
| UNSPSC #: | 31161716 |
| TAA Compliant: | No |
| Weight: | 0.575 lb |
