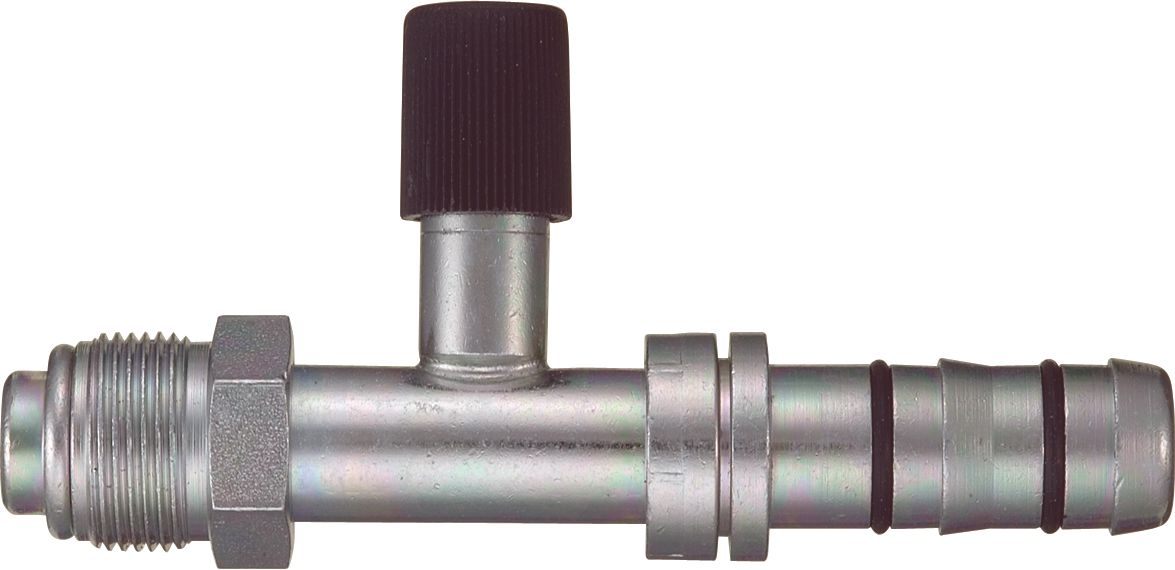

E-Z Clip Series Male O-Ring Short Pilot Straight 5/8 (-12)x 7/8-14 (-10) Field Attachable Fitting
(Pack of
1)
SKU:17492 Item#: 17492
• Make your own hose assemblies in minutes
• Reduce downtime and increase productivity
• Does not require hose-crimping machinery
• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
Use with GH134W Multi-Refrigerant Hose
Assembly Instructions
Step 1: Cut the hose. Be sure the cut is made square to the hose length.
Step 2: Slip on two clips.
Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.
Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.
Step 5: Snap the cage into the groove on the nipple.
Step 6: Slide the clips over the cage arms and into the channels on each arm.
Step 7: Close the clips.
E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Frequently Bought Together
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Product Description
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity
• Does not require hose-crimping machinery
• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
Use with GH134W Multi-Refrigerant Hose
Assembly Instructions
Step 1: Cut the hose. Be sure the cut is made square to the hose length.
Step 2: Slip on two clips.
Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.
Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.
Step 5: Snap the cage into the groove on the nipple.
Step 6: Slide the clips over the cage arms and into the channels on each arm.
Step 7: Close the clips.
E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Technical Specifications
| Item#: | 17492 |
|---|---|
| Manufacturer Model #: | FJ3132-02-1012S |
| Manufacturer Series Number | E-Z Clip Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 5/8 (-12) " |
| Dash Size | -12 |
| Gender | Male |
| Fitting End Style | O-Ring Short Pilot |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Drop Length | with R134a Low Side Port |
| Fitting Dimension B (Working End) | 7/8-14 (-10) |
| Weatherhead No. | FJ3132-02-1012S |
| Size | (-12)X(-10) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.32 lb |
