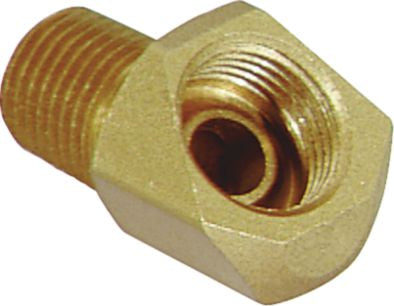

Elbow, Brass, Inverted Flare, 45°, 1/4-18 x 3/8", Male NPT x Tube, 500PSI
(Pack of
5)
SKU:5270 Item#: 5270
• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and welded steel tubing that can be flared• Pressure depends on tubing used. Will stand burst pressure of standard tube – up to 5,000 PSI with double-flared and 3,500 PSI with copper tube• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Automotive brake, oil and fuel lines; LP and natural gas connections; hazardous liquids; air, water, fuel, oil or non-corrosive gaseous chemicals
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Compression Self-Align Connector 3/8 x 3/8"
Couldn't load pickup availability
Compression Nut Brass 8mm
Couldn't load pickup availability
Compression Sleeve Steel 4" Tube
Couldn't load pickup availability
Copper Vent Elbow, 3/4" x 3/4" x 1/8"
Couldn't load pickup availability
Copper Reducing Coupling, 2" x 1-1/2"
Couldn't load pickup availability
Copper Cross-Over, 3/4" x 3/4"
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Close Nipple Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Close Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Product Description
• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and welded steel tubing that can be flared• Pressure depends on tubing used. Will stand burst pressure of standard tube – up to 5,000 PSI with double-flared and 3,500 PSI with copper tube• Temperature range: –65°F to +250°F (–54°C to +121°C)• Applications: Automotive brake, oil and fuel lines; LP and natural gas connections; hazardous liquids; air, water, fuel, oil or non-corrosive gaseous chemicals
Technical Specifications
| Item#: | 5270 |
|---|---|
| Fitting Type | Inverted Flare |
| Angle | 45 ° |
| Configuration | Elbow |
| Material | Brass |
| Connection Type A x B | Male NPT x Tube |
| Fitting Dimension A | 1/4-18 |
| Fitting Dimension B | 3/8 " |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
| Weight: | 0.47 lb |
