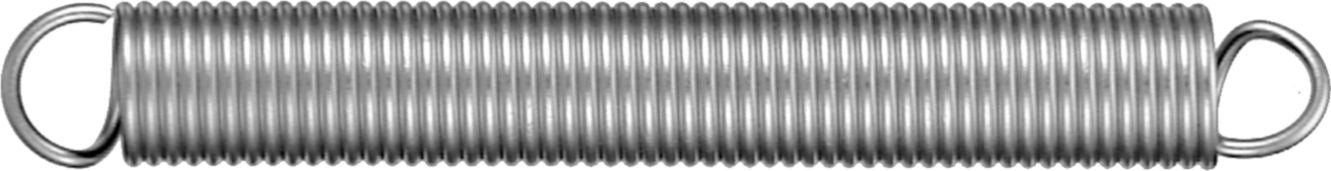

Extension Spring, Steel, 14 Wire Gauge, 30lbs Maximum Work Load, 11/16" OD, 5-1/2" Length
(Pack of
2)
SKU:89661 Item#: 89661
• Used in applications where a movable part is to be retained or controlled under pressure
• Used in applications where a movable part is to be retained or controlled under pressure
Frequently Bought Together
Extension Spring 5/16 x 4"
Item#: 89668
$0.00
Couldn't load pickup availability
Extension Spring 7/16 x 2-3/4"
Item#: 89653
$0.00
Couldn't load pickup availability
Extension Spring 3/4 x 3-1/8"
Item#: 89654
$0.00
Couldn't load pickup availability
Automotive Trim Lifting Masking Tape 10mm x 10m
Item#: KT14769
$0.00
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/2" x 50'
Item#: P40519
$0.00
Couldn't load pickup availability
Universal Sorbent Pad
Item#: SF10327
$0.00
Couldn't load pickup availability
BK1 Bearkat Safety Glasses
Item#: SF11306
$0.00
Couldn't load pickup availability
Wypall L30 Wiper 16.4 x 9.8"
Item#: 28136
$0.00
Couldn't load pickup availability
Lens Cleaning Towelettes
Item#: SF10357
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Item#: P85437
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Item#: 1579409
$0.00
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/2" x 50'
Item#: P40519
$0.00
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 30mm x 10'
Item#: KT13486
$0.00
Couldn't load pickup availability
Adhesive-Back Shim Stock 1/8 x 5/8" x 50'
Item#: P40100
$0.00
Couldn't load pickup availability
Product Description
• Used in applications where a movable part is to be retained or controlled under pressure• Used in applications where a movable part is to be retained or controlled under pressure
Technical Specifications
| Item#: | 89661 |
|---|---|
| Type | Extension Spring |
| O.D. | 11/16 " |
| Length | 5-1/2 |
| Wire Diameter | 0.080 " |
| Wire Gauge | 14 |
| Initial Tension | 8 lb |
| Rate | 4.66 lb./in. |
| Maximum Work Load | 30 lb |
| Material | Steel |
| UNSPSC #: | 31161907 |
| TAA Compliant: | Yes |
| Weight: | 0.3 lb |
