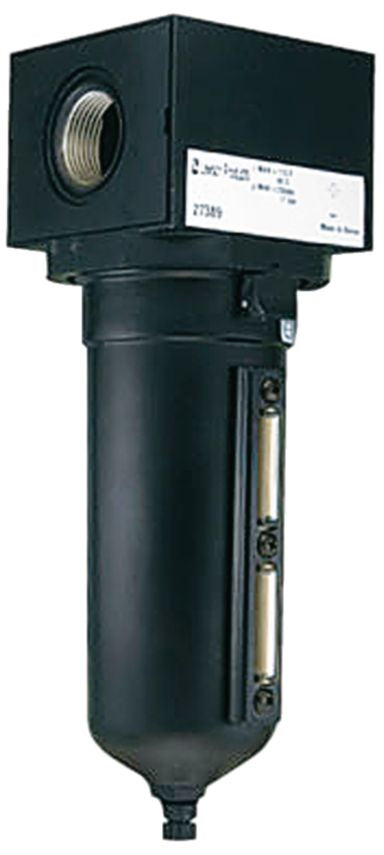

Filter 3/4-14 Female NPT
(Pack of
1)
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• 40 micron filter element standard• Solid all-metal body and clear polycarbonate bowl (1" body size is all metal with a polycarbonate sight)
Two-stage filtration process removes dirt, rust, pipe scale and 99% of condensed water. Features a large filter media surface for increased flow and fingertip twist drain system (an optional automatic drain can be easily installed).
Frequently Bought Together
Pressure Gauge Center Back Mount 0 to 30PSI
Couldn't load pickup availability
Replacement Air Filter Element 40 Micron
Couldn't load pickup availability
Pressure Gauge Lower Mount 0 to 300PSI
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/8 x 1/4"
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/8-27
Couldn't load pickup availability
Barb-Lok Hose End 3/8" (-6) x 1/4-18 (-4)
Couldn't load pickup availability
Barb-Tite™ Instrumentation Elbow 3/8 x 1/4"
Couldn't load pickup availability
Barb-Lok Hose End 1/4" (-4) x 5/8-18 (-6)
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• 40 micron filter element standard• Solid all-metal body and clear polycarbonate bowl (1" body size is all metal with a polycarbonate sight)
Two-stage filtration process removes dirt, rust, pipe scale and 99% of condensed water. Features a large filter media surface for increased flow and fingertip twist drain system (an optional automatic drain can be easily installed).
Technical Specifications
| Item#: | 27388 |
|---|---|
| Description | Filter |
| Body Size | 1 " |
| Maximum Flow | 300 ft³/min |
| Maximum Pressure | 250 PSI |
| Port Style | Female NPT |
| Port Size | 3/4-14 |
| Bowl Capacity | 18 Oz. |
| Replacement Polycarbonate Bowl | - |
| Replacement Metal Bowl | - |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 4.16 lb |
