Home Fasteners Flange Locknut with Nylon Insert Grade F 3/4-10
Fasteners

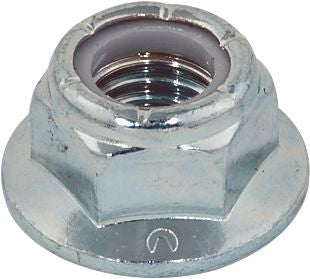

Locknut Flange with Nylon Insert, Grade F, Steel, Zinc Finish, Coarse Thread, 1-1/8" Across Flats, 0.825" Thickness, 3/4-10
(Pack of 25)

Item#: 16147

Kent Automotive

• Nylon insert has low coefficient of friction (will not damage bolt threads), high resilience, low chemical activity and relatively great hardness
• Locks uniformly over entire range of bolt thread tolerances and has low, even torque scatter, permitting repeated predictable tightening torques
• Grade F Nylon Insert Flange Nuts can be used with Grade 2 or Grade 5 fasteners
• Solves the problem of an oversized hole and eliminates the need for a washer
• Non-serrated flange will not mar the surface

Read More
Check Availability

Catalog page#: 11-28

Frequently Bought Together


SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88436

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88435

Hex Nut Grade 8 Steel M12-1.75

Item#: 80250

SAE J995C Locknut with Nylon Insert Grade A #12-24

Item#: 323

IFI 100/107 Top Locknut Grade C 1-8

Item#: 80936

Jam Nut with Nylon Insert Grade 2 7/16-14

Item#: 54660

Metric Machine Screw Nut, Stainless Steel, M6x1.0

Item#: DY10100600

Hex Flange Nut Grade 8 Steel M12-1.75

Item#: 57131

Hex Nut Grade 8 Alloy Steel 1-8

Item#: A109

Hex Nut Grade 5 Steel 3/8-16

Item#: FA95679

Hex Nut Grade 8 Steel 3/8-16

Item#: FA68402

Hex Flange Nut Grade 10 Steel M8-1.25

Item#: 59768

Fender Liner Screw Grommet Nylon M5.5

Item#: 1457513

Molding Clip with Sealer Nylon White 10 x 12mm

Item#: P85218

Front Bumper Push-Type Retainer Nylon 10mm

Item#: 1482003

Product Description

• Nylon insert has low coefficient of friction (will not damage bolt threads), high resilience, low chemical activity and relatively great hardness
• Locks uniformly over entire range of bolt thread tolerances and has low, even torque scatter, permitting repeated predictable tightening torques
• Grade F Nylon Insert Flange Nuts can be used with Grade 2 or Grade 5 fasteners
• Solves the problem of an oversized hole and eliminates the need for a washer
• Non-serrated flange will not mar the surface

Technical Specifications

Item#: 16147
Diameter 3/4 "
Thread Pitch 10
Grade F
Finish Bright Zinc
Type Nylon Insert Flange Lock Nut
Material Carbon Steel
Thickness 0.825 "
Across Flats 1-1/8 "
Thread Coarse
Specifications IFI 100/107
Quantity Per Package 25.0000
Flange Diameter 1.585 "
UNSPSC #: 31161712
TAA Compliant: Yes
Weight: 4.14 lb
