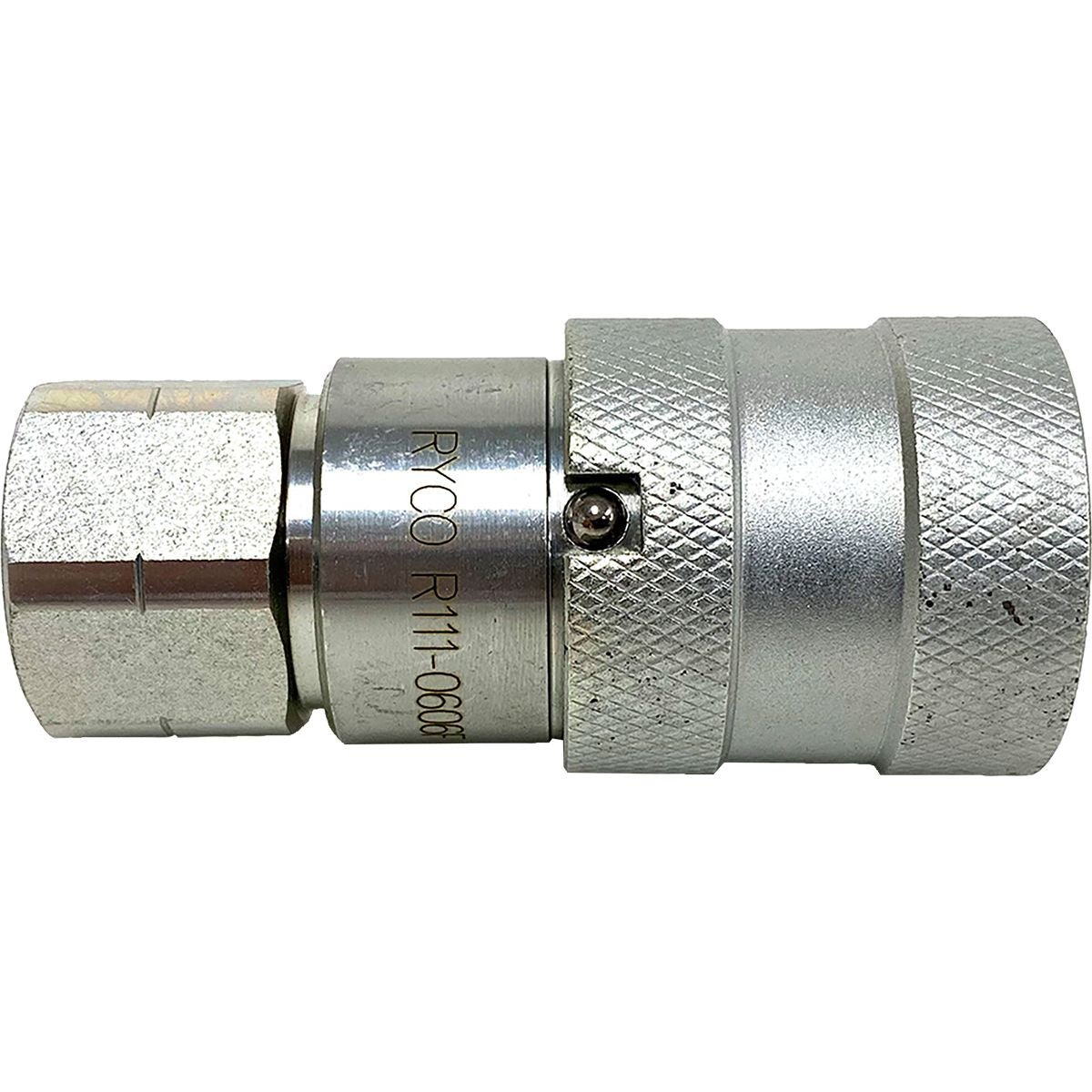

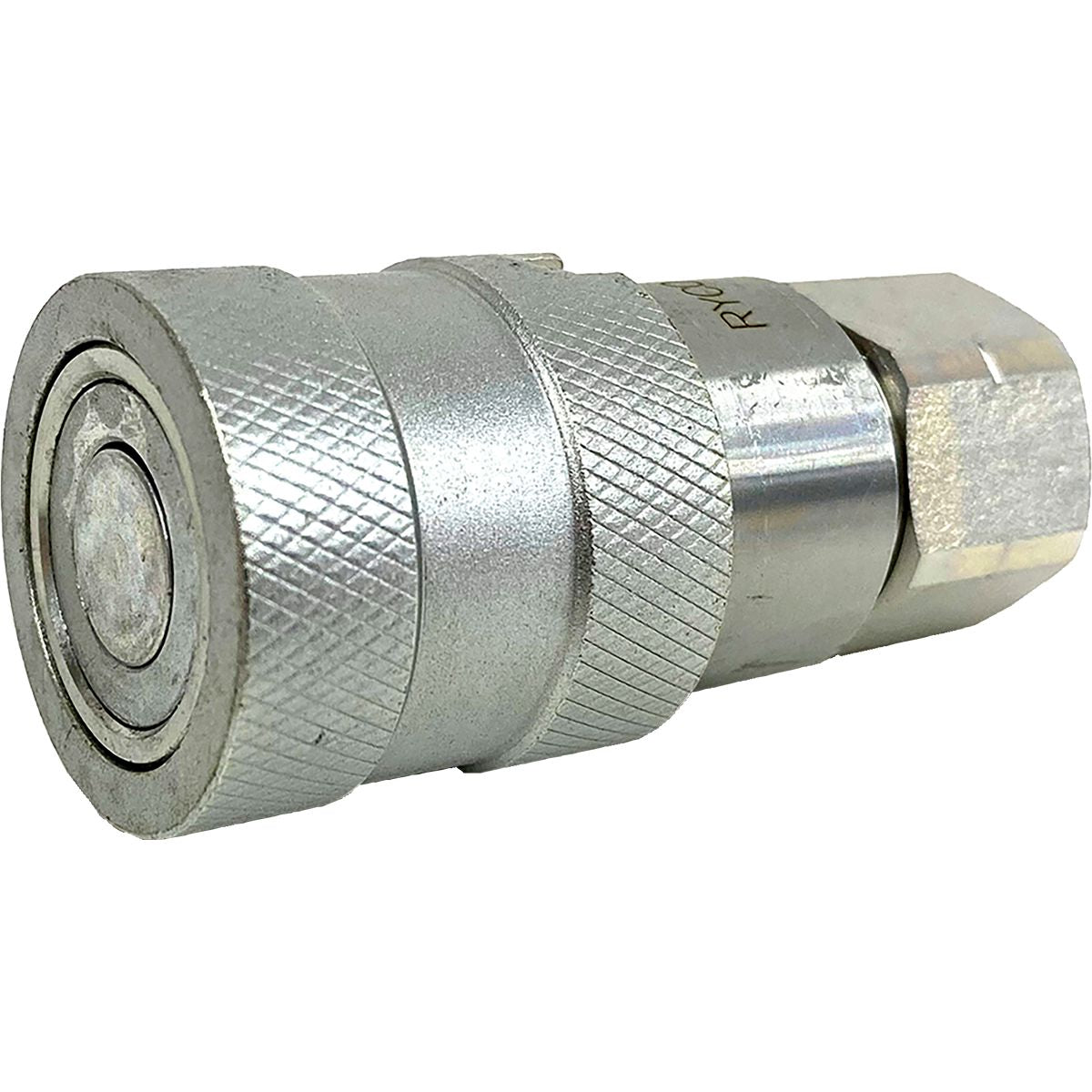

Flatface Hydraulic Quikconnect Fitting, 3/8 FPT X 3/8 Female Flatface Body, ISO 16028 Compliant, Connects Against 250 PSI Pressure
(Pack of
1)
SKU:DY44700086 Item#: DY44700086
Used in applications where hydraulic oil spillage is a safety or environmental hazard, either in plant or in the field. The flat face coupler design minimizes fluid loss on disconnection for a cleaner, safer environment. Recommended for applications where a quick changeover of equipment tools is necessary.
• Heavy-duty plating for improved service life and corrosion-resistance
• High-flow rate with low-pressure loss for smooth equipment operation
• Easily cleaned surfaces reduce the possibility of contamination
• Easy one-handed push-to-connect operation when one half of the coupling is rigidly mounted
• Connects against up to 250 PSI static pressure
• Rotating sleeve lock guards against unintentional disconnection
• Complies with ISO 16028
• Connects against 250 PSI static pressure
• Material: Steel, zinc plated and passivated for corrosion resistance
• Operating Temperature: -4°F to 257°F (-20°C to 125°C)
• Fluid Compatibility: Mineral/petroleum based hydraulic oils
• Comparable to Parker FEM, Faster FFN, Stucchi FIRG, Safeway FFE and all couplings that comply with ISO 16028
Frequently Bought Together
Industrial O-Ring Nitrile 7/32 x 11/32 x 1/16"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 1/8 x 1/4 x 1/16"
$0.00
Couldn't load pickup availability
Spacer Ring Black
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
$0.00
Couldn't load pickup availability
3TM3
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1/2" x 3/4-14
$0.00
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 1" FPT X 3/4"Plug
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
$0.00
Couldn't load pickup availability
Product Description
Used in applications where hydraulic oil spillage is a safety or environmental hazard, either in plant or in the field. The flat face coupler design minimizes fluid loss on disconnection for a cleaner, safer environment. Recommended for applications where a quick changeover of equipment tools is necessary.• Heavy-duty plating for improved service life and corrosion-resistance
• High-flow rate with low-pressure loss for smooth equipment operation
• Easily cleaned surfaces reduce the possibility of contamination
• Easy one-handed push-to-connect operation when one half of the coupling is rigidly mounted
• Connects against up to 250 PSI static pressure
• Rotating sleeve lock guards against unintentional disconnection
• Complies with ISO 16028
• Connects against 250 PSI static pressure
• Material: Steel, zinc plated and passivated for corrosion resistance
• Operating Temperature: -4°F to 257°F (-20°C to 125°C)
• Fluid Compatibility: Mineral/petroleum based hydraulic oils
• Comparable to Parker FEM, Faster FFN, Stucchi FIRG, Safeway FFE and all couplings that comply with ISO 16028
Technical Specifications
| Item#: | DY44700086 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Flat Face Female Coupler |
| Style | ISO 16028 |
| Standards | ISO 16028 |
| Body Size | 3/8 " |
| Thread Size | 3/8-18 |
| Thread Style | Female NPT |
| Burst Pressure | 17400 PSI |
| Seal Material | Nitrile O-Ring with PTFE Bonded Seals |
| Material | Zinc Plated Steel |
| Locking Mechanism | Multiple Metal Balls |
| Flow | 6 gal/min |
| Length | 2.52 " |
| Temperature Range | -4°F to 257°F (-20°C to 125°C) |
| Working Pressure | 4,350 PSI |
| Hex Size | 24mm (0.95") |
| Maximum Diameter | 1.26 " |
| Coupled Length | 4.25 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 0.535 lb |
