FLNR Series Class RK5 Indicator Fuse, 2 Amps, 250 Volts AC, 125 Volts DC, Slow Blow
(Pack of
5)
• Fuses provide visual blown fuse indication at a glance
• Patented state-of-the-art solid state design provides maximum reliability and superior performance in a true dual-element design
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production

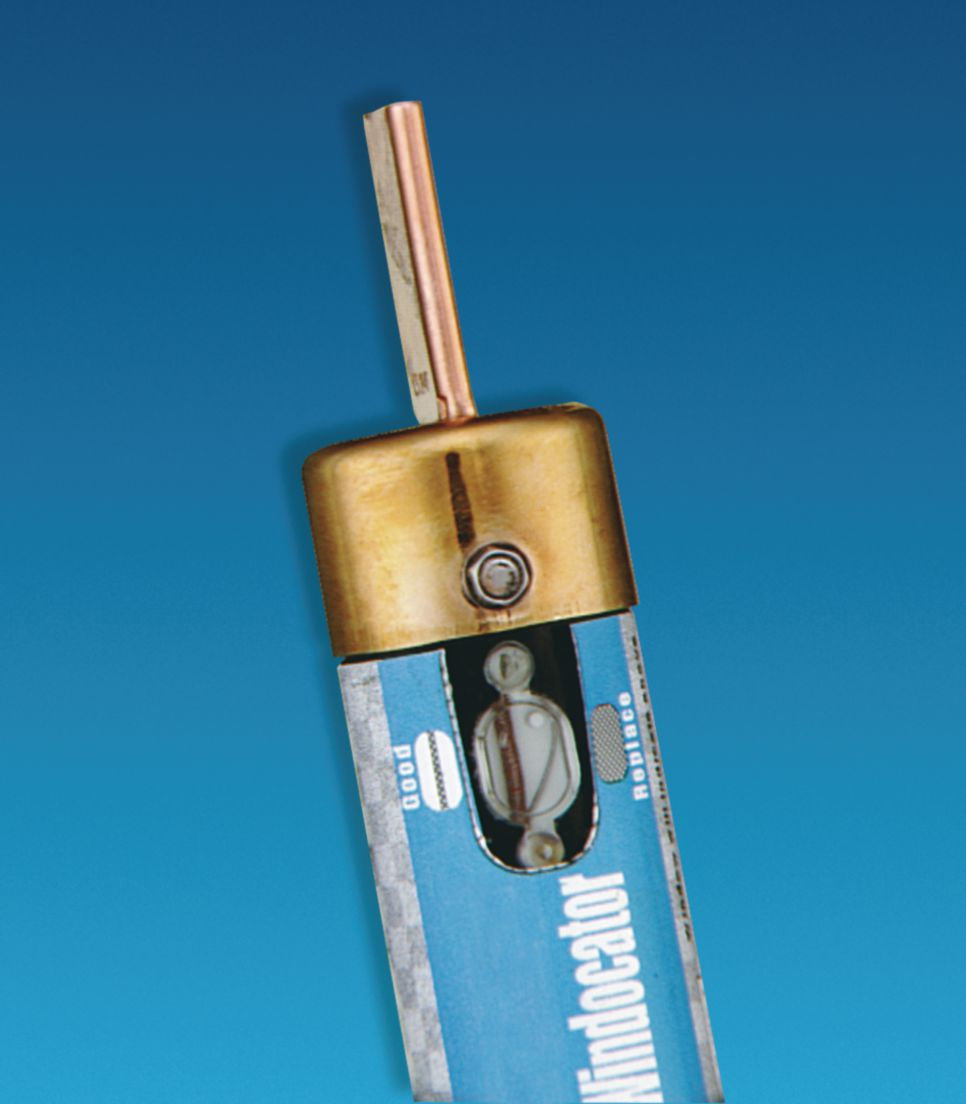

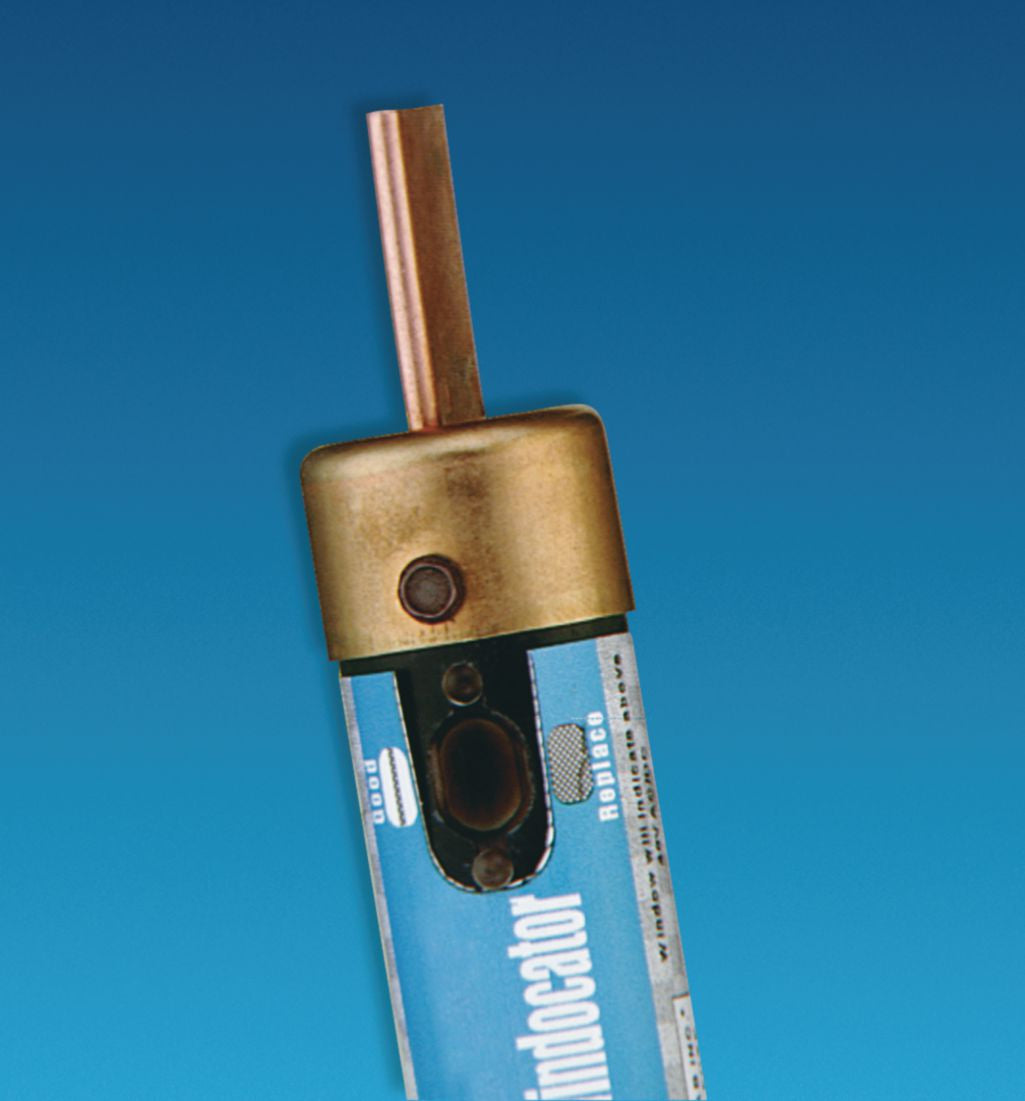

• A glance at the indicating window of an FLNR_ID or FLSR_ID Indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Rated at 250V AC, 125V DC maximum
• Interrupting ratings: AC 200,000A rms symmetrical, DC 20,000A
FLNR amperages between 8/10 and 30A do not have indicating window due to size restrictions.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
H11 Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 21CP
Couldn't load pickup availability
Low-Profile MINI Fuse 15A Blue
Couldn't load pickup availability
ATO/ATC Fuse 10A Red
Couldn't load pickup availability
Low-Profile MINI Fuse 25A Natural
Couldn't load pickup availability
FLNR Series Class RK5 Indicator Fuse 15A
Couldn't load pickup availability
FLSR Series Class RK5 Indicator Fuse 45A
Couldn't load pickup availability
523 Series Midget Fuse 1.125A
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Product Description
• Fuses provide visual blown fuse indication at a glance• Patented state-of-the-art solid state design provides maximum reliability and superior performance in a true dual-element design
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an FLNR_ID or FLSR_ID Indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Rated at 250V AC, 125V DC maximum
• Interrupting ratings: AC 200,000A rms symmetrical, DC 20,000A
FLNR amperages between 8/10 and 30A do not have indicating window due to size restrictions.
Technical Specifications
| Item#: | 25294 |
|---|---|
| Style | FLNR_ID Indicator Class RK5 Fuses |
| Amperage | 2 A |
| Rating | 250V AC, 125V DC Maximum V |
| Approvals | UL, CSA |
| Type | Fuses |
| Replaces | competitors FRN-R and TRN-R non-indicating fuses |
| UNSPSC #: | 39121627 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
