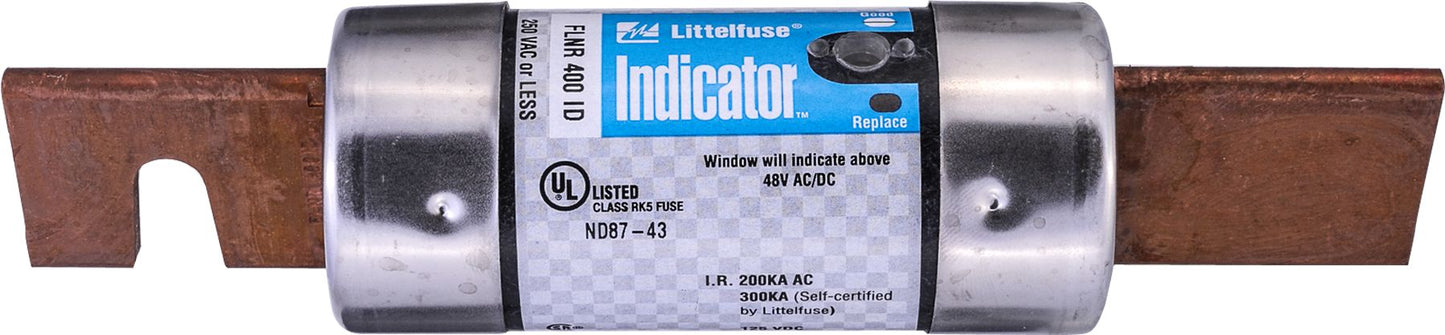

FLNR Series Class RK5 Indicator Fuse, 400 Amps, 250 Volts AC, 125 Volts DC, Slow Blow
(Pack of
1)
SKU:60065 Item#: 60065
• Fuses provide visual blown fuse indication at a glance
• Patented state-of-the-art solid state design provides maximum reliability and superior performance in a true dual-element design
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an FLNR_ID or FLSR_ID Indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Rated at 250V AC, 125V DC maximum
• Interrupting ratings: AC 200,000A rms symmetrical, DC 20,000A
Fuses 70A and higher have blade ends.
Frequently Bought Together
Ring Tongue Terminal 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
H7 Halogen Miniature Bulb 55W 12V
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
MCaseâ„¢ Cartridge Fuse 30A Pink
$0.00
Couldn't load pickup availability
Universal Plug-In Circuit Breaker Type I 10A
$0.00
Couldn't load pickup availability
MCaseâ„¢ Cartridge Fuse 15A Gray
$0.00
Couldn't load pickup availability
KTK Series Midget Fuse 3A
$0.00
Couldn't load pickup availability
FLSR Series Class RK5 Indicator Fuse 7-1/2A
$0.00
Couldn't load pickup availability
A6DR Series Class RK1 Indicator Fuse 60A
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Product Description
• Fuses provide visual blown fuse indication at a glance• Patented state-of-the-art solid state design provides maximum reliability and superior performance in a true dual-element design
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an FLNR_ID or FLSR_ID Indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Rated at 250V AC, 125V DC maximum
• Interrupting ratings: AC 200,000A rms symmetrical, DC 20,000A
Fuses 70A and higher have blade ends.
Technical Specifications
| Item#: | 60065 |
|---|---|
| Style | FLNR_ID Indicator Class RK5 Fuses |
| Amperage | 400 A |
| Rating | 250V AC, 125V DC Maximum V |
| Approvals | UL, CSA |
| Type | Fuses |
| Replaces | competitors FRN-R and TRN-R non-indicating fuses |
| UNSPSC #: | 39121627 |
| TAA Compliant: | Yes |
| Weight: | 1.74 lb |
