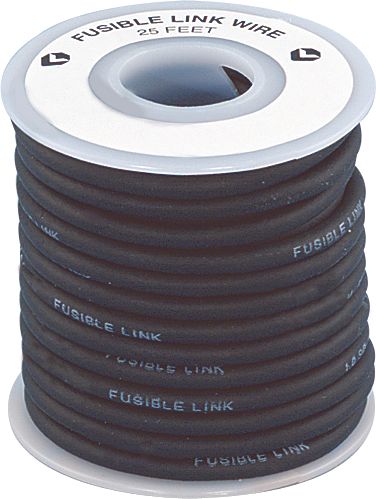

Fusible Link Wire, 14 AWG, 25' Length, Ethylene/Acrylic Elastomers Insulation, Vehicle Circuit Protection
(Pack of
1)
SKU:55825 Item#: 55825
A fusible link is a special short length of low-tension cable installed by an OEM and designed to open a circuit when subjected to extreme current overload to minimize wiring system damage when such an overload accidentally occurs. A short circuit causes the fusible link to act as an element in a slow-blow fuse. It is not intended to be used in place of a fuse, but only where a fuse is not economical. The vehicle manufacturer should be consulted about questions on fusible link length and size. Typically, a fusible link should be four gauges smaller than the circuit wire. For example, if the circuit wire is 12 Ga., use a 16 Ga. fusible link.
• Meets SAE Specification J156
• Insulation is an EAE elastomer, rated at 302°F (150°C) and has characteristics superior to SAE J1128 Type SXL
• Supplied in 25-foot spools
NOTE: Always replace a fusible link with one of the same gauge and length as installed by the manufacturer. This material is suitable only for the replacement of a failed factory-installed link after the cause of failure is corrected. It should not be used to replace a fuse or circuit breaker.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 2-56
Frequently Bought Together
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
$0.00
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
$0.00
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' White
$0.00
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Red
$0.00
Couldn't load pickup availability
Cross Linked Primary Wire 22 AWG 100' Green
$0.00
Couldn't load pickup availability
Fusible Link Wire 10 AWG 25'
$0.00
Couldn't load pickup availability
Fusible Link Wire 16 AWG 25'
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
A fusible link is a special short length of low-tension cable installed by an OEM and designed to open a circuit when subjected to extreme current overload to minimize wiring system damage when such an overload accidentally occurs. A short circuit causes the fusible link to act as an element in a slow-blow fuse. It is not intended to be used in place of a fuse, but only where a fuse is not economical. The vehicle manufacturer should be consulted about questions on fusible link length and size. Typically, a fusible link should be four gauges smaller than the circuit wire. For example, if the circuit wire is 12 Ga., use a 16 Ga. fusible link.• Meets SAE Specification J156
• Insulation is an EAE elastomer, rated at 302°F (150°C) and has characteristics superior to SAE J1128 Type SXL
• Supplied in 25-foot spools
NOTE: Always replace a fusible link with one of the same gauge and length as installed by the manufacturer. This material is suitable only for the replacement of a failed factory-installed link after the cause of failure is corrected. It should not be used to replace a fuse or circuit breaker.
Technical Specifications
| Item#: | 55825 |
|---|---|
| Wire Gauge | 14 AWG |
| Length | 25 ft |
| Package Type | 1 Spool |
| Approvals | Meets SAE Specification J156 |
| OEM Number | GM 6292995 |
| Style | Spooled Fusible Link Wire |
| Type | Vehicle Circuit Protection |
| UNSPSC #: | 26121524 |
| TAA Compliant: | Yes |
| Weight: | 0.62 lb |
