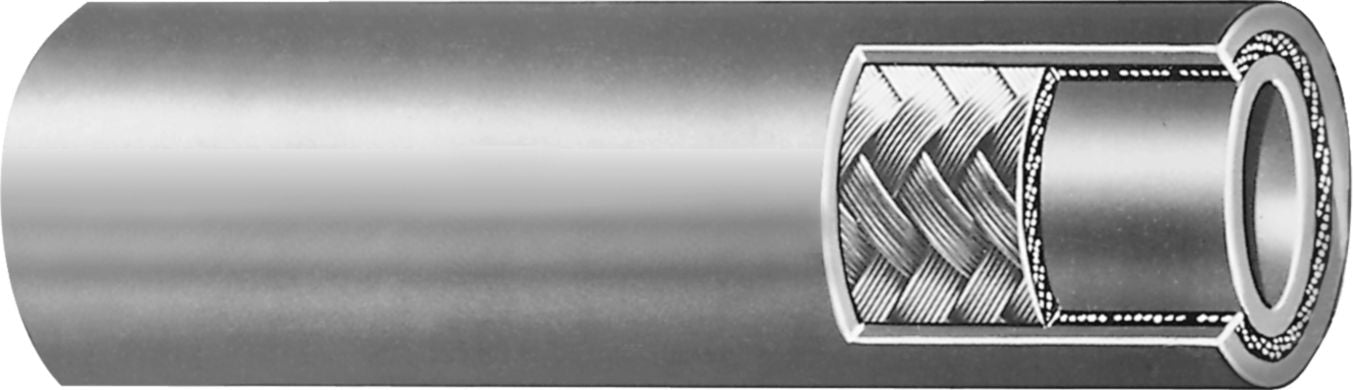

Gates- G1- Rubber - Steel Braided- 1 Steel Braid- SAE 100R1- 1275 psi -1 (-16)
(Pack of
165)
SKU:PL82962B16 Item#: PL82962B16
Best for use in medium-pressure applications involving air, gasoline, crude, fuel and lubricating oils.
• Single-wire braid
SAE 100R1
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Meets SAE Specification 100R1 Type AT
Use with MegaCrimp® Fittings
Coupling Recomendations:
MegaCrimp® Couplings
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
Frequently Bought Together
Bumper and Wheel Well Liner Push-Type Retainer
Item#: 1404768
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Product Description
Best for use in medium-pressure applications involving air, gasoline, crude, fuel and lubricating oils.• Single-wire braid
SAE 100R1
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Meets SAE Specification 100R1 Type AT
Use with MegaCrimp® Fittings
Coupling Recomendations:
MegaCrimp® Couplings
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
Technical Specifications
| Item#: | PL82962B16 |
|---|---|
| Manufacturer Model #: | 16G1 |
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R1 |
| Industry Rating 2 | EN 853 1SN |
| Industry Rating | MSHA 2G |
| Manufacturer Series Number | G1 |
| Manufacturer Series Name | G1 |
| I.D. | 1 (-16) " |
| Hose O.D. | 1.40 " |
| Working Pressure | 1,275 PSI |
| Burst Pressure | 5,100 PSI |
| Fitting Series | MegaCrimp, Field Attachable T, GSP (-3 only), Stainless Steel B |
| Bend Radius | 9.0 " |
| Inner Tube Material | Nitrile - Type C |
| Hose Reinforcement | 1 Steel Braid |
| Hose Cover Material | Modified Nitrile - Type C3 |
| Temperature | Normal |
| Stock | Non-Stock |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | Petroleum Based Fluids -40F to +212F, Water based emulsions to +200F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
