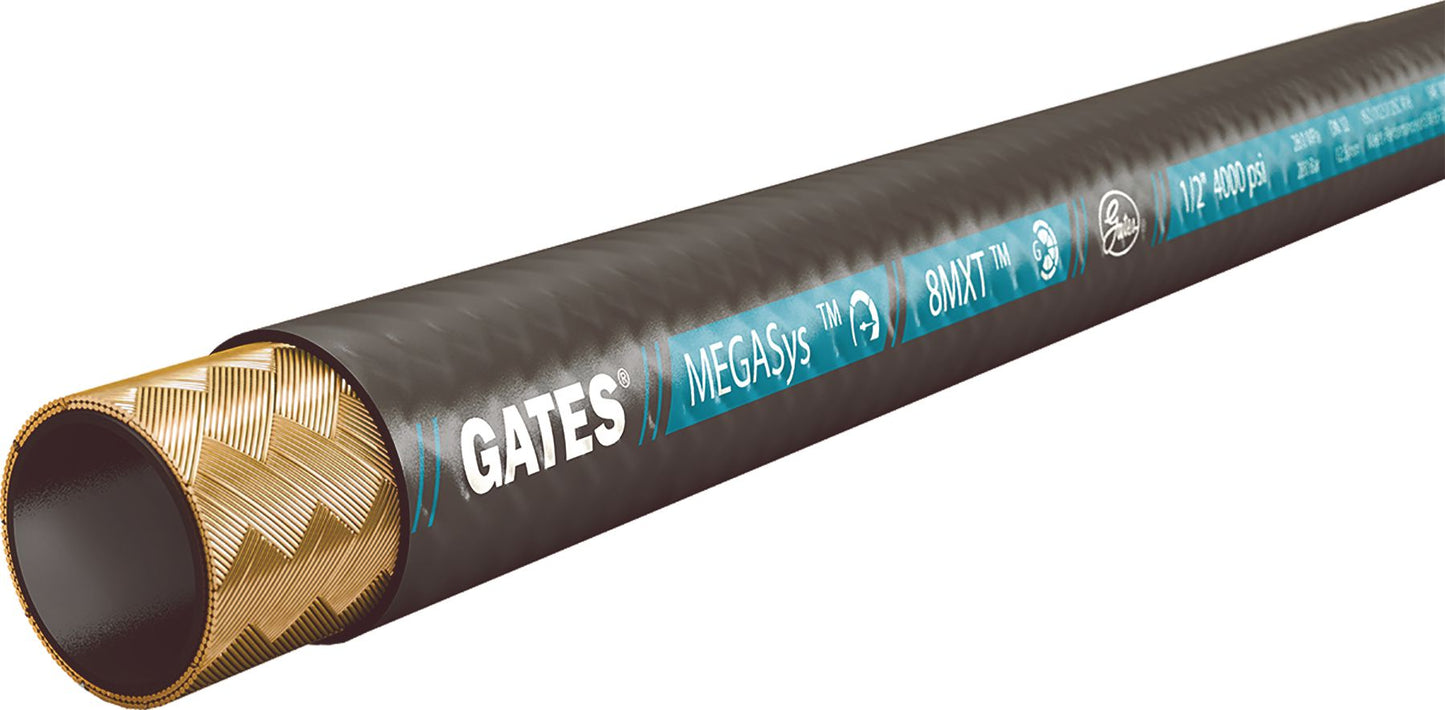

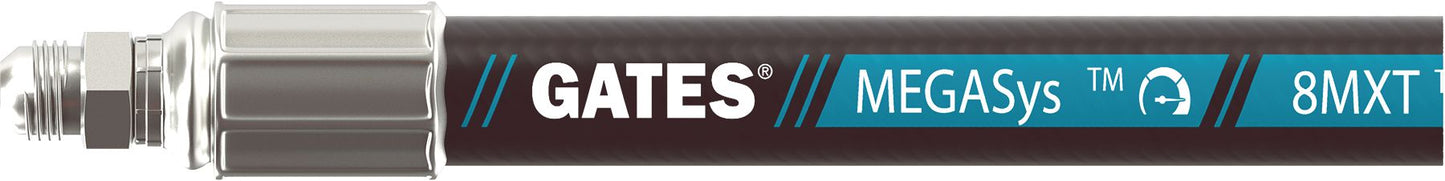

G2 - Rubber - Steel Braided- 2 Steel Braids- SAE 100R2 - 1-1/4 (-20)
(Pack of
120)
SKU:PL82963B20 Item#: PL82963B20
Recommended for high-pressure hydraulic oil lines. MXT™ hose has smaller exterior dimensions, lower force to bend and significantly tighter bend radius than all SAE specs listed below. It is one of Lawson’s most flexible hydraulic hoses.
• Reinforcement: High-tensile steel wire braid
SAE 100R16
• Temperature range: –40°F to +212°F (–40°C to +100°C)
• Meets SAE 100R16 dimensions and performance
• Meets SAE 100R17 (-6, -8, -10, and -12) dimension and performance
• Meets SAE 100R2 performance
• Meets SAE 100R19 (-6 and -8) performance
Use with MegaCrimp® Fittings
Coupling Recomendations:
MegaCrimp® Couplings
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
Frequently Bought Together
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
Recommended for high-pressure hydraulic oil lines. MXT™ hose has smaller exterior dimensions, lower force to bend and significantly tighter bend radius than all SAE specs listed below. It is one of Lawson’s most flexible hydraulic hoses.• Reinforcement: High-tensile steel wire braid
SAE 100R16
• Temperature range: –40°F to +212°F (–40°C to +100°C)
• Meets SAE 100R16 dimensions and performance
• Meets SAE 100R17 (-6, -8, -10, and -12) dimension and performance
• Meets SAE 100R2 performance
• Meets SAE 100R19 (-6 and -8) performance
Use with MegaCrimp® Fittings
Coupling Recomendations:
MegaCrimp® Couplings
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
Technical Specifications
| Item#: | PL82963B20 |
|---|---|
| Manufacturer Model #: | 20MXT |
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R2 |
| Industry Rating 2 | EN 853 2SN |
| Industry Rating | MSHA 2G |
| Manufacturer Series Number | G2 |
| Manufacturer Series Name | G2 |
| I.D. | 1-1/4 (-20) " |
| Hose O.D. | 1.86 " |
| Working Pressure | 1,825 PSI |
| Burst Pressure | 7,300 PSI |
| Fitting Series | MegaCrimp, Field Attachable T, GSP (-24 and -32 only),Global Spiral, Stainless Steel B |
| Bend Radius | 16.5 " |
| Inner Tube Material | Nitrile - Type C |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Modified Nitrile - Type C2 |
| Temperature | Normal |
| Stock | Non-Stock |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | Petroleum based fluids -40F to +212F, Water based emulsions to +200F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
