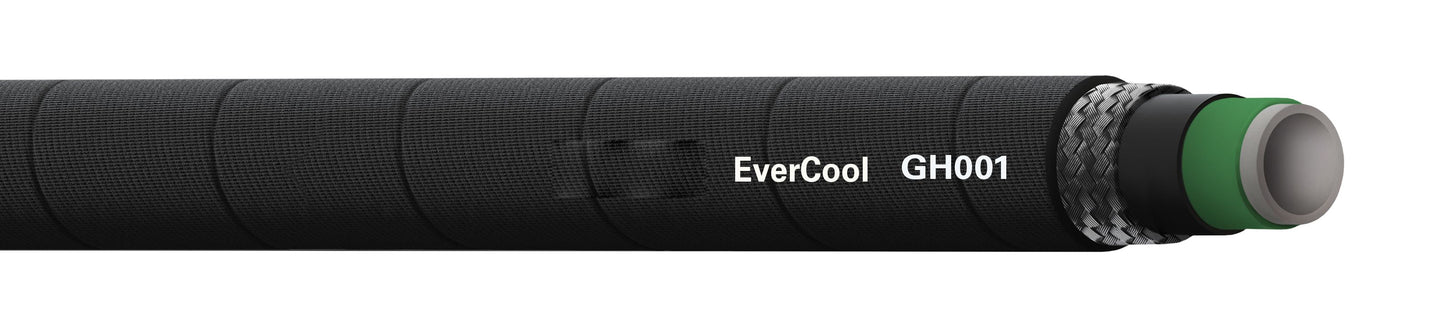

GH001 Multi-Refrigerant Hose 5/16" 50ft
(Pack of
50.0)
• Agency Ratings: Significantly exceeds SAE J2064 Coupling Integrity, vibration and impulse tested
• Fittings Certified: E-Z Clip® Series
• Agency Approvals: None
• Construction:
– Inner Tube: Polyamide veneer
– Reinforcement: Polyester braid
– Cover: EPDM
• Temperature Range: –40°F to +284°F (–40°C to +140°C)
Use only with Weatherhead® E-Z Clip® Series Hose Ends
• Application Note: Transportation, refrigeration and air conditioning systems
50-ft. length consists of no more than two pieces with none shorter than 10 feet. Total length may vary (±10%).
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Avagard Rubber Water Hose Assembly 5/8" x 100'
Couldn't load pickup availability
Avagard Rubber Water Hose Assembly 3/4" x 50'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
Couldn't load pickup availability
Avagard Rubber Water Hose Assembly 5/8" x 25'
Couldn't load pickup availability
Avagard Rubber Water Hose Assembly 5/8" x 50'
Couldn't load pickup availability
Tough-Tek Rubber Pressure Washing Hose 1/4" X 100'
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
Couldn't load pickup availability
AC134A Refrigerant Hose 5/8" 25ft
Couldn't load pickup availability
S Series Teflon Hydraulic Hose 0.5" 1ft
Couldn't load pickup availability
Air Conditioning Hose 1/2" 210ft
Couldn't load pickup availability
Wheel House Molding Split Rivet Aluminum 3/16"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Product Description
• Agency Ratings: Significantly exceeds SAE J2064 Coupling Integrity, vibration and impulse tested• Fittings Certified: E-Z Clip® Series
• Agency Approvals: None
• Construction:
– Inner Tube: Polyamide veneer
– Reinforcement: Polyester braid
– Cover: EPDM
• Temperature Range: –40°F to +284°F (–40°C to +140°C)
Use only with Weatherhead® E-Z Clip® Series Hose Ends
• Application Note: Transportation, refrigeration and air conditioning systems
50-ft. length consists of no more than two pieces with none shorter than 10 feet. Total length may vary (±10%).
Technical Specifications
| Item#: | 17425 06 |
|---|---|
| Type | Refigerant Hose |
| Industry Rating 2 | SAE J2064 Type E, Class 1 |
| Manufacturer Series Number | GH001 |
| Manufacturer Series Name | Weatherhead |
| Hose I.D. | 5/16 (-6) " |
| Working Pressure | 500 PSI |
| Burst Pressure | 2,000 PSI |
| Bend Radius | 2 " |
| Inner Tube Material | Polyamide veneer |
| Hose Reinforcement | Polyester Braid |
| Hose Cover Material | Chlorobutyl |
| Fitting Series | E-Z Clip Series |
| Temperature | -40F to +275F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 7.0 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
