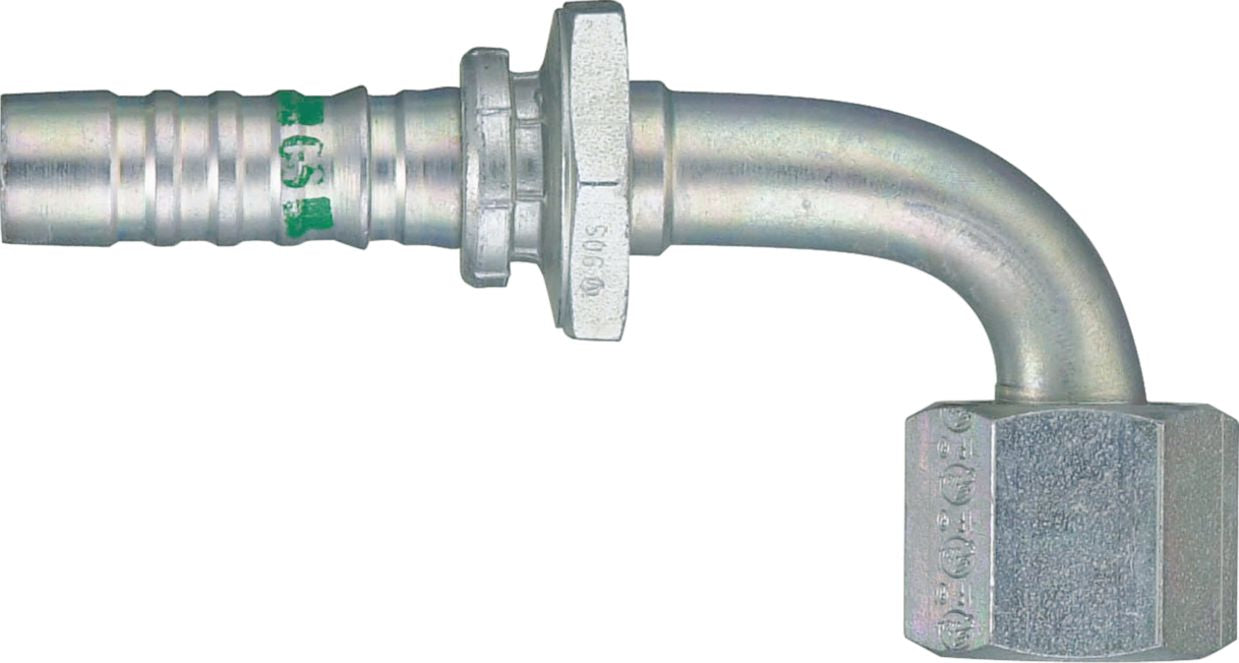

Global Spiral MGS Split Flange Split Flange Code 61 90° 1-1/4 (-20)x 1-1/4X11/16 Crimp-on End Fitting
(Pack of
1)
SKU:56147 Item#: 56147
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Frequently Bought Together
Bumper and Wheel Well Liner Push-Type Retainer
Item#: 1404768
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Product Description
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Technical Specifications
| Item#: | 56147 |
|---|---|
| Manufacturer Model #: | 20MGS-20FFORX90M |
| Manufacturer Series Number | Global Spiral MGS |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 90 Degrees |
| Fitting Drop Length | Short |
| Fitting Dimension B (Working End) | 1-1/4 (-20) |
| Flange Diameter | 2.00 " |
| Gates Number | 20MGS-20FFORX90S |
| Thread Size | 1-11/16-12 " |
| Size | (-20)X(-20) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 3.44 lb |
