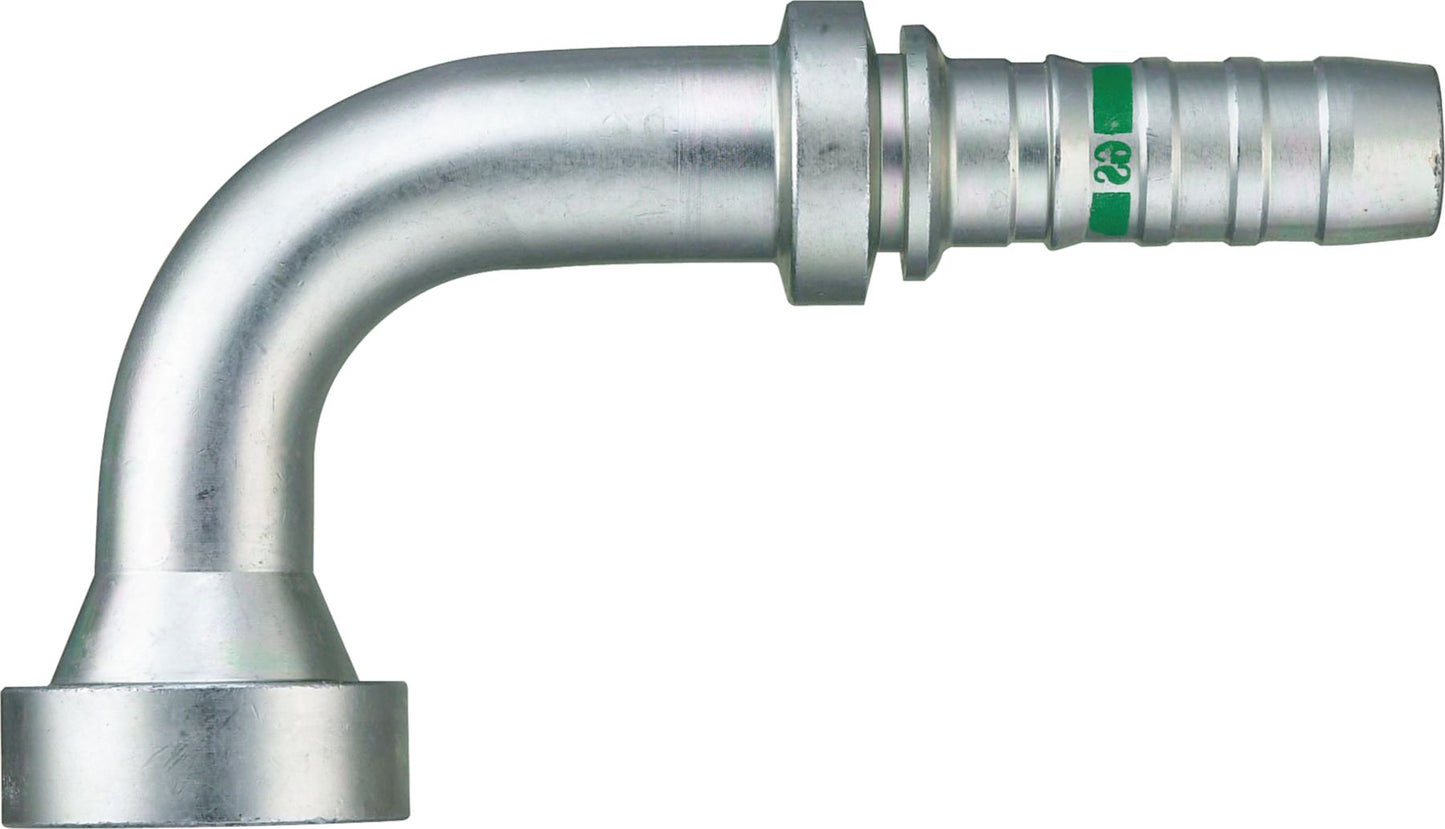

Global Spiral Series Split Flange Split Flange Caterpillar Style 90° 3/4 (-12)x 1 (-16) Crimp-on End Fitting
(Pack of
1)
SKU:23188 Item#: 23188
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Frequently Bought Together
Bumper Push-Type Retainer Nylon 18mm
Item#: P15600
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Item#: P85262
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Item#: 1468633
$0.00
Couldn't load pickup availability
Product Description
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Technical Specifications
| Item#: | 23188 |
|---|---|
| Manufacturer Model #: | 12GS-16FLC90-068 |
| Manufacturer Series Number | Global Spiral Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Caterpillar/Thick Flange |
| Fitting End Type | Caterpillar Style |
| Fitting Angle | 90 Degrees |
| Fitting Dimension B (Working End) | 1 (-16) |
| Flange Diameter | 1.88 " |
| Gates Number | 12GS-16FLC90-068 |
| Size | (-12)X(-16) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 1.05 lb |
