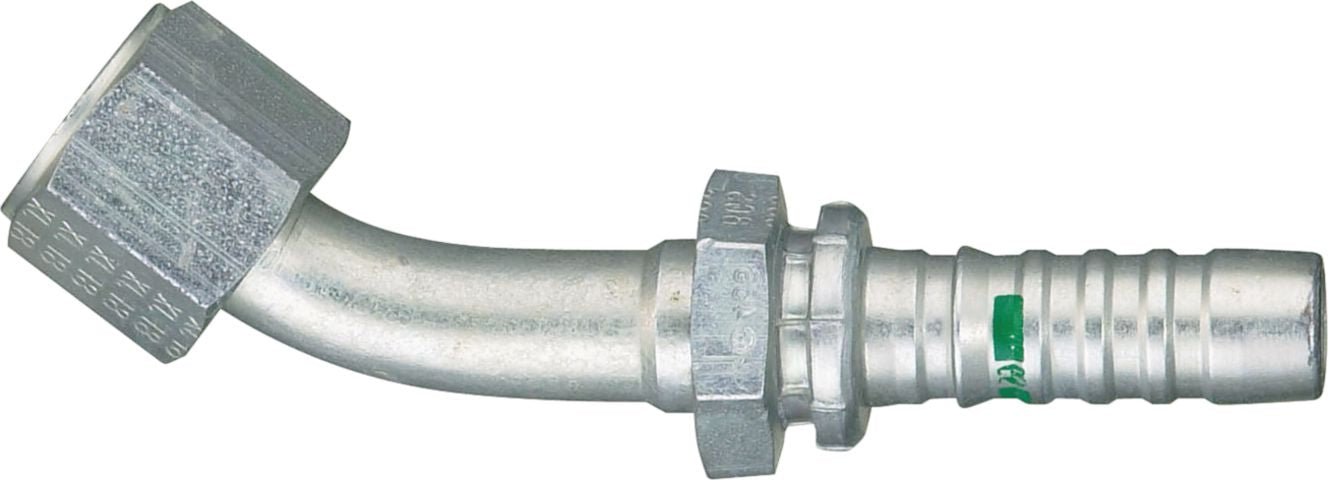

Global Spiral Series Female JIC 37° Flare 45° 1 (-16)x 1-5/8-12 (-20) Crimp-on End Fitting
(Pack of
1)
SKU:28232 Item#: 28232
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D. • When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Frequently Bought Together
Bumper Push-Type Retainer Nylon 18mm
Item#: P15600
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Item#: P85262
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Item#: 1468633
$0.00
Couldn't load pickup availability
Product Description
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D. • When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"Technical Specifications
| Item#: | 28232 |
|---|---|
| Manufacturer Model #: | 16GS-20FJX45S |
| Manufacturer Series Number | Global Spiral Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Female |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | 45 Degrees |
| Fitting Drop Length | Short |
| Fitting Dimension B (Working End) | 1-5/8-12 (-20) |
| Gates Number | 16GS-20FJX45S |
| Drop Length | Short |
| Size | (-16)X(-20) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 1.75 lb |
