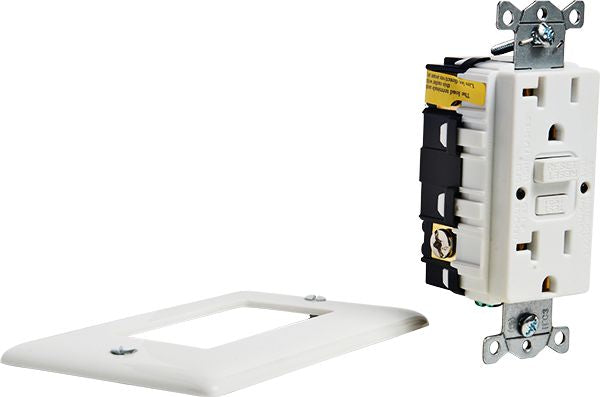

Commercial Grade Ground Fault Receptacle, 20 Amps, 125 Volts, White, NEMA 5-20R
(Pack of
1)
SKU:15511 Item#: 15511
• Built-in LED light test feature indicates if the ground fault circuit is functioning; LED light is normally off
• Designed with safety in mind; if the line and load wires are miswired, there is no power to the face of the outlet or downstream, and the unit will not be able to reset
• Meets the requirements of new UL 943 standard effective 7/28/06
• Superior surge protection: 50 joules/250V over voltage capability, and resistant to nuisance tripping
Test Procedure: With the receptacle properly wired, press the test button. If the GFCI circuit is functional, the LED light will be OFF and the reset button will pop out. Press the reset button to re-energize. If the GFCI circuit is NOT functional, the LED light flashes red and the reset button does not pop out, indicating the receptacle should be replaced.
Frequently Bought Together
Miniature Incandescent Bulb 12V 2CP
$0.00
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 3CP
$0.00
Couldn't load pickup availability
Saf-T Connect Locking Plug
$0.00
Couldn't load pickup availability
Quad Receptacle
$0.00
Couldn't load pickup availability
Industrial Duty SAF-T Connect Plug 15A 125V
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Saf-T Connect Locking Plug
$0.00
Couldn't load pickup availability
Quad Receptacle
$0.00
Couldn't load pickup availability
Industrial Duty SAF-T Connect Plug 15A 125V
$0.00
Couldn't load pickup availability
Product Description
• Built-in LED light test feature indicates if the ground fault circuit is functioning; LED light is normally off• Designed with safety in mind; if the line and load wires are miswired, there is no power to the face of the outlet or downstream, and the unit will not be able to reset
• Meets the requirements of new UL 943 standard effective 7/28/06
• Superior surge protection: 50 joules/250V over voltage capability, and resistant to nuisance tripping
Test Procedure: With the receptacle properly wired, press the test button. If the GFCI circuit is functional, the LED light will be OFF and the reset button will pop out. Press the reset button to re-energize. If the GFCI circuit is NOT functional, the LED light flashes red and the reset button does not pop out, indicating the receptacle should be replaced.
Technical Specifications
| Item#: | 15511 |
|---|---|
| Style | LED Ground Fault Receptacle |
| Volts | 125 |
| NEMA Configuration | 5-20R |
| Color | White |
| Approvals | UL 943 Standard, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | No |
| Weight: | 0.36 lb |
