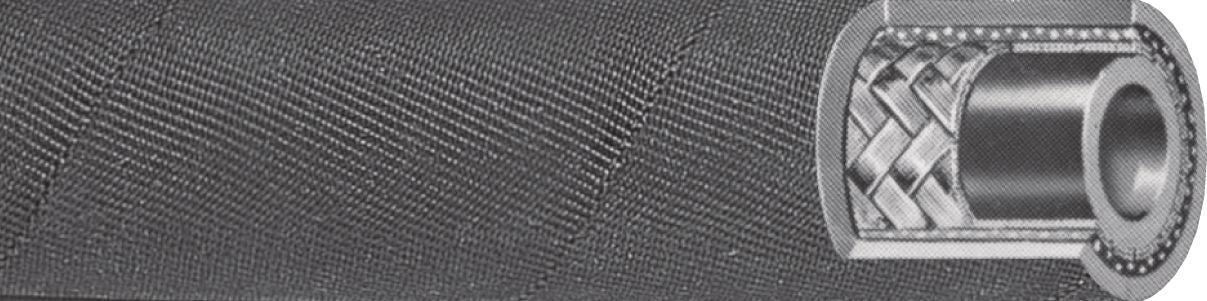

Weatherhead- H190- Rubber - Steel Braided- 1 Steel Braid- SAE 100R1- 1000 psi -1-1/4 (-20)
(Pack of
100)
SKU:20408 20 Item#: 20408 20
• Agency Ratings: SAE 100R1 Type AT EN 853 Type 1SN• Fittings Certified: Z-Series• Agency Approvals: MSHA, ISO 1436a, Marine Application J1942/1 Hydraulic Service• Construction: – Inner Tube: Nitrile – Reinforcement: One steel braid– Cover: Vinyl nitrile – eight times better abrasion resistance• Temperature Range:– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)– Water-based hydraulic fluids: –40°F to +158°F (–40°C to +70°C)– Water: 32°F to 158°F (0°C to 70°C)
• Application Notes:
– For medium-pressure hydraulic lines; including agricultural
– Provides higher pressure ranges than H104 hose
– Upgraded pressure ratings
Frequently Bought Together
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R1 Type AT EN 853 Type 1SN• Fittings Certified: Z-Series• Agency Approvals: MSHA, ISO 1436a, Marine Application J1942/1 Hydraulic Service• Construction: – Inner Tube: Nitrile – Reinforcement: One steel braid– Cover: Vinyl nitrile – eight times better abrasion resistance• Temperature Range:– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)– Water-based hydraulic fluids: –40°F to +158°F (–40°C to +70°C)– Water: 32°F to 158°F (0°C to 70°C)• Application Notes:
– For medium-pressure hydraulic lines; including agricultural
– Provides higher pressure ranges than H104 hose
– Upgraded pressure ratings
Technical Specifications
| Item#: | 20408 20 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R1S |
| Industry Rating 2 | EN 853 1SN |
| Industry Rating | MSHA, ISO 1436a, Marine Application J1942/1 Hydraulic Service |
| Manufacturer Series Number | H190 |
| Manufacturer Series Name | WeatherSHIELD |
| I.D. | 1-1/4 (-20) " |
| Hose O.D. | 1.71 " |
| Working Pressure | 1,000 PSI |
| Burst Pressure | 4,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 16-1/2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braid |
| Hose Cover Material | Vinyl Nitrile |
| Temperature | High |
| Length | 100 ft |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | Petroleum based fluids -40F to +260F, Water based fluids -40F to +158F, Water +32F to +158F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 165.0 lb |
