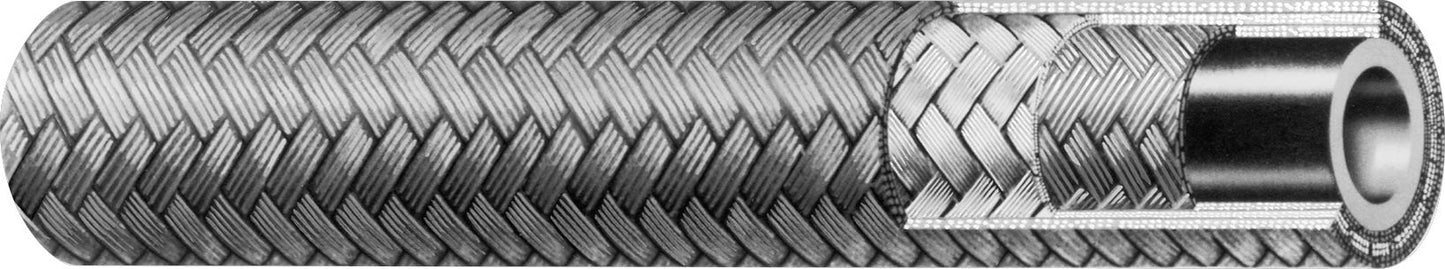

H213 Truck Hose 61/64" OD x 50'
(Pack of
50)
50-ft. lengths consist of no more than two pieces with none shorter than 10 feet. Total length may vary from 45 to 60 feet.
• Agency Ratings: SAE J1402 Type AI D.O.T. A I
• Fittings Certified: 213 N-Series Field-Attachable, 069 E-Series
• Agency Approvals: None
• Construction:
– Inner Tube: CPE
– Reinforcement: One fiber braid, one steel braid
– Cover: Fiber braid
• Temperature Range:
– Air Brake: –40°F to +200°F (–40°C to +93°C)
– Hot Oil: –50°F to +302°F (–45°C to +150°C)
Use with 213 N-Series Field-Attachable or 069 E-Series fittings
• Application Notes:– General-purpose truck and hydraulic hose– For use in air brake, fuel, diesel fuel and high-temperature petroleum oil applications– -16 size is not SAE or D.O.T. approved for air brake applications
50' lengths consist of no more than 2 pieces with none shorter than 10'. Total length may vary +/- 10%. Bulk lengths consist of no more than 3 pieces with none shorter than 20'. Total length may vary +/- 10%.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
Couldn't load pickup availability
Air Conditioning GM Sealing Washers
Couldn't load pickup availability
Vacuum Hose Connector Straight 1/4 x 1/4"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 1-5/16 - 2-1/4"
Couldn't load pickup availability
Band-It Clamp Basic Ratchet Tool 3/8-5/8 9-3/4"
Couldn't load pickup availability
Band-It Clamp High-Carbon Steel 1-3/4 x 5/8"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
Couldn't load pickup availability
DOT Union Tee Nylon 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
H353H Truck Hose 1-15/64" OD x 250'
Couldn't load pickup availability
H33808-250R
Couldn't load pickup availability
H213 Truck Hose 47/64" OD x 250'
Couldn't load pickup availability
Product Description
50-ft. lengths consist of no more than two pieces with none shorter than 10 feet. Total length may vary from 45 to 60 feet.• Agency Ratings: SAE J1402 Type AI D.O.T. A I
• Fittings Certified: 213 N-Series Field-Attachable, 069 E-Series
• Agency Approvals: None
• Construction:
– Inner Tube: CPE
– Reinforcement: One fiber braid, one steel braid
– Cover: Fiber braid
• Temperature Range:
– Air Brake: –40°F to +200°F (–40°C to +93°C)
– Hot Oil: –50°F to +302°F (–45°C to +150°C)
Use with 213 N-Series Field-Attachable or 069 E-Series fittings
• Application Notes:– General-purpose truck and hydraulic hose– For use in air brake, fuel, diesel fuel and high-temperature petroleum oil applications– -16 size is not SAE or D.O.T. approved for air brake applications
50' lengths consist of no more than 2 pieces with none shorter than 10'. Total length may vary +/- 10%. Bulk lengths consist of no more than 3 pieces with none shorter than 20'. Total length may vary +/- 10%.
Technical Specifications
| Item#: | 64471 12 |
|---|---|
| Type | Truck Hose |
| Category/Performance | Medium Pressure |
| Industry Rating 2 | SAE J14002 Type A1 |
| Industry Rating | DOT A1 |
| Manufacturer Series Number | H213 |
| I.D. | 5/8 (-12) " |
| Dash Size | -12 |
| Working Pressure | 750 PSI |
| Burst Pressure | 3,000 PSI |
| Hose O.D. | 61/64 " |
| Bend Radius | 2-3/4 " |
| Inner Tube Material | CPE |
| Hose Reinforcement | 1 Fiber Braid, 1 Steel Braid |
| Hose Cover Material | Fiber Braid |
| Fitting Series | Field Attachable 213N Series |
| Temperature | Air Brake -40F to +200F, Hot Oil -50F to +302 F |
| Color | Black |
| UNSPSC #: | 40142000 |
| TAA Compliant: | Yes |
| Weight: | 14.5 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
