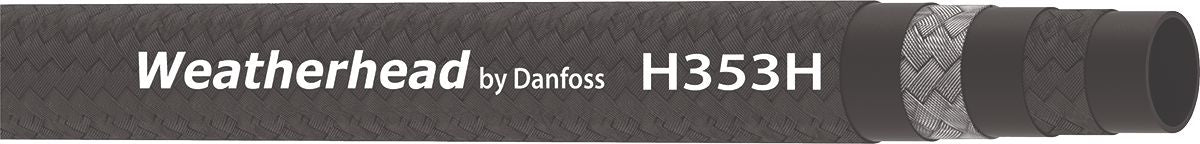

Home Fleet H353H Truck Hose 49/64" OD x 250'
Fleet

H353H Truck Hose, 13/32-8" ID, 49/64" OD, 250' Length, 1.75" Bend Radius, 1250PSI Working Pressure, SAE 100R5, SAE J1402 Type II
(Pack of 250)

Item#: PL64470B08

Danfoss®

Bulk lengths consist of no more than three pieces with none shorter than 20 feet. Total length may vary ±10%.
• Agency Ratings: SAE 100R5 SAE J1402 Type 3 (-4 through -12 only) D.O.T. A II ABS
• Fittings Certified: 069 E-Series (except -40); 247 N-Series (sizes -4 through -16)
• Agency Approvals: None
• Construction:
– Inner Tube: Nitrile
– Reinforcement: One fiber braid, one steel braid
– Cover: One fiber braid
• Temperature Range:
– Hydraulic: –40°F to +212°F (–40°C to +100°C)
– Air Brake: –40°F to +200°F (–40°C to 93°C)
– Hot Oil: –40°F to +250°F (–40°C to 121°C)
• Application Notes:
– General-purpose truck and hydraulic hose
– For use in air brake, fuel and grease lines, high-temperature petroleum oils. and medium-pressure hydraulic applications
– -16 through -40 sizes are not SAE or D.O.T. approved for air brake applications
Note: When using T-420 or T-480 crimpers, use Adapter Die Ring T-420-25 (Item No. 63689) and Series T-400 Spacer Rings. When using ET4000/4001 crimpers, use Adapter Die Ring T-410-25 (Item No. 63782) and Series T-410 Spacer Rings.

Read More

Frequently Bought Together


DOT Compression Union Brass 3/8"

Item#: 84254

DOT Elbow Male Nylon 1/4 x 1/8-27

Item#: 91794

DOT Compression Elbow Male 90° Brass 3/8 x 3/8"

Item#: 84285

Fuel Line Hose 3/8" ID x 25'

Item#: 6637

Standard Heater Hose 1/2" ID x 50' Black

Item#: 6609

Fuel Line Hose 3/16" ID x 25'

Item#: 84075

Pipe Bushing Brass 1/2-14 x 3/8-18

Item#: 5287

DOT Compression Connector Male Brass 3/8 x 3/8"

Item#: 84269

DOT Elbow Male 90° Brass 5/8 x 1/2-14

Item#: 27191

Fender Splash Shield Retainer Nylon 20mm

Item#: P53958

Fender Liner Screw Grommet Nylon M5.5

Item#: 1457513

Phillips Truss Head Sheet Metal Screw Steel 15mm

Item#: P13770
No product placeholder

H56912

Item#: 1178232
No product placeholder

H56910

Item#: 1184123

Product Description

Bulk lengths consist of no more than three pieces with none shorter than 20 feet. Total length may vary ±10%.
• Agency Ratings: SAE 100R5 SAE J1402 Type 3 (-4 through -12 only) D.O.T. A II ABS
• Fittings Certified: 069 E-Series (except -40); 247 N-Series (sizes -4 through -16)
• Agency Approvals: None
• Construction:
– Inner Tube: Nitrile
– Reinforcement: One fiber braid, one steel braid
– Cover: One fiber braid
• Temperature Range:
– Hydraulic: –40°F to +212°F (–40°C to +100°C)
– Air Brake: –40°F to +200°F (–40°C to 93°C)
– Hot Oil: –40°F to +250°F (–40°C to 121°C)
• Application Notes:
– General-purpose truck and hydraulic hose
– For use in air brake, fuel and grease lines, high-temperature petroleum oils. and medium-pressure hydraulic applications
– -16 through -40 sizes are not SAE or D.O.T. approved for air brake applications
Note: When using T-420 or T-480 crimpers, use Adapter Die Ring T-420-25 (Item No. 63689) and Series T-400 Spacer Rings. When using ET4000/4001 crimpers, use Adapter Die Ring T-410-25 (Item No. 63782) and Series T-410 Spacer Rings.

Technical Specifications

Item#: PL64470B08
Type Truck Hose
Category / Performance Medium Pressure
Industry Rating 1 SAE 100R5
Industry Rating 2 SAE J1402 Type II
Industry Rating DOT/FMVSS 106 Type All
Manufacturer Series Number H353H
I.D. 13/32 (-8) "
Working Pressure 1250 PSI
Burst Pressure 8,000 PSI
Hose O.D. 49/64 "
Bend Radius 1.75 "
Inner Tube Material High Temp CPE
Hose Reinforcement 2-Polyester Braid, 1 Wire Braid
Hose Cover Material Black Textile
Fitting Series Crimp: 069E Series, O69D Series, Field Attachable: 247N Series, FJ Flat Crimp Series
Temperature Hydraulic -58F to +302F, Air Brake -40F to +250F, Hot Oil -55F to +302 F
Color Black
UNSPSC #: 40142000
TAA Compliant: Yes
