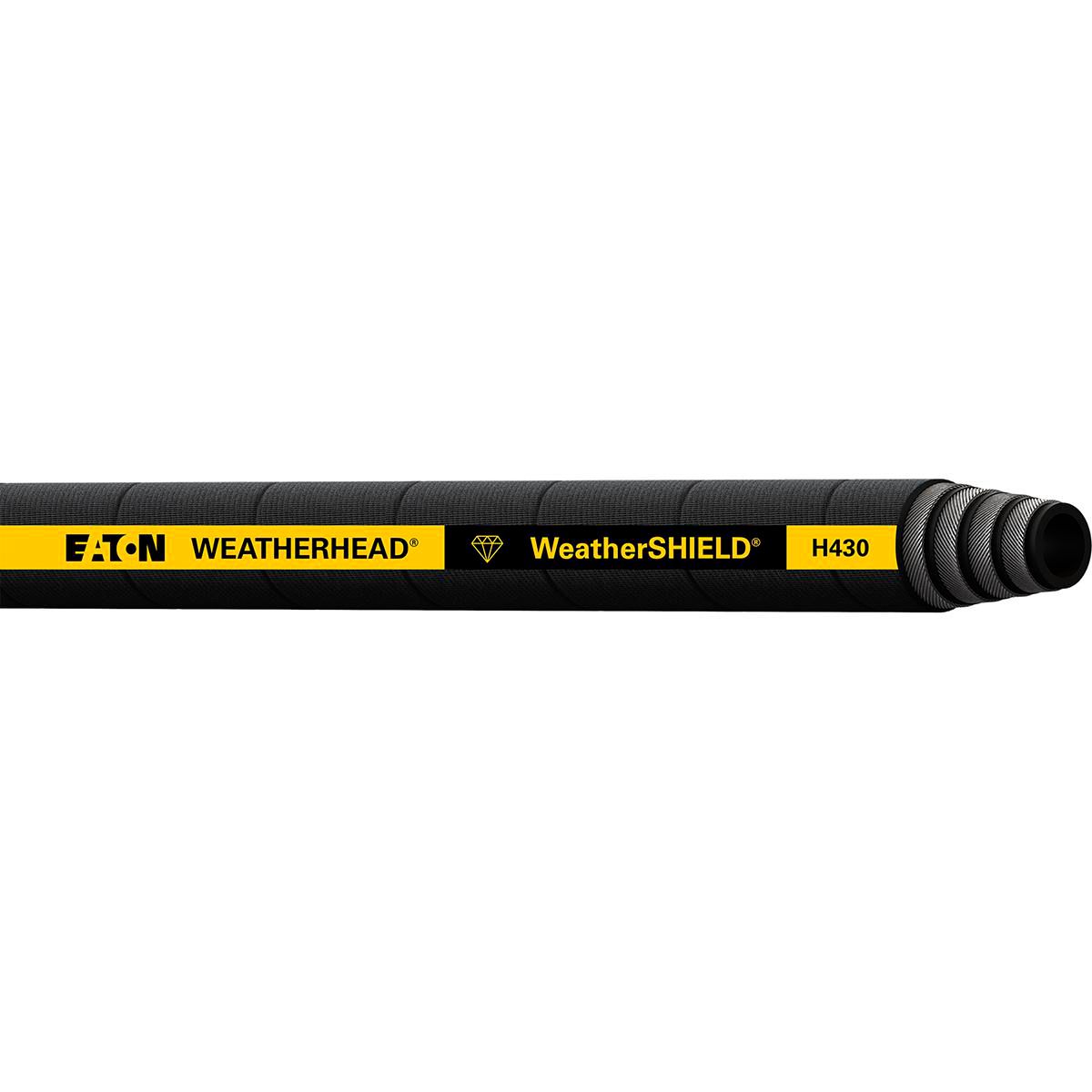

Bulk Hose Spiral Reinfor
(Pack of
50)
SKU:1177541 Item#: 1177541
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard
• Agency Ratings: SAE 100R12, EN 856 Type R12 Performance
• Fittings Certified: 4S Series
• Agency Approvals: MSHA, ABS, DNV, USCG
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 4-wire spiral
– Cover: Dura-Tuff Premium Abrasion Resistance
• Temperature Range: – Petroleum-based fluids: –40°F to +260°F (–40°C to +126°C)
• Application Notes:
– For very high pressure hydraulic lines that experience pulsation and flexing during operation
– Recommended for construction, mining, farming and high-performance industrial equipment
– 1/2 normal SAE100R12 bend radius
Consists of two pieces totaling 50 feet (±10%)
NOTE: Consult your sales agent for availability of special sizes and lengths
Frequently Bought Together
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 200 Foot
$0.00
Couldn't load pickup availability
M4KH Hydraulic Hose 1/2" ID x 50' Length
$0.00
Couldn't load pickup availability
Impulse Rubber Water Hose Assembly 5/8" x 50'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
$0.00
Couldn't load pickup availability
Hydraulic Union 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Hydraulic Union 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
$0.00
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 500'
$0.00
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.53" x 50'
$0.00
Couldn't load pickup availability
C5C Hydraulic Hose 13/32" ID x 50' Length
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
• Dura-Tuff premium abrasion resistant hose cover offers 8x greater abrasion resistance than industry standard• Agency Ratings: SAE 100R12, EN 856 Type R12 Performance
• Fittings Certified: 4S Series
• Agency Approvals: MSHA, ABS, DNV, USCG
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 4-wire spiral
– Cover: Dura-Tuff Premium Abrasion Resistance
• Temperature Range: – Petroleum-based fluids: –40°F to +260°F (–40°C to +126°C)
• Application Notes:
– For very high pressure hydraulic lines that experience pulsation and flexing during operation
– Recommended for construction, mining, farming and high-performance industrial equipment
– 1/2 normal SAE100R12 bend radius
Consists of two pieces totaling 50 feet (±10%)
NOTE: Consult your sales agent for availability of special sizes and lengths
Technical Specifications
| Item#: | 1177541 |
|---|---|
| Manufacturer Model #: | H43010 |
| Type | Rubber - Steel Spiral Plies |
| Category / Performance | Very High Pressure |
| Industry Rating 1 | SAE 100R12 |
| Industry Rating 2 | EN 856 Type R12 |
| Industry Rating | MSHA, ABS, DNV, USCG |
| Manufacturer Series Number | H430 |
| I.D. | 5/8 (-10) " |
| Hose O.D. | 1.11 " |
| Working Pressure | 6,000 PSI |
| Burst Pressure | 24,000 PSI |
| Fitting Series | 430U Series |
| Bend Radius | 4.0 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 4 Spiral Steel Plies |
| Hose Cover Material | Nitrile |
| Temperature | High |
| Length | 50 ft |
| Size | -10 |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Impulse |
| Temperature Range | -40F to +260F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 35.0 lb |
