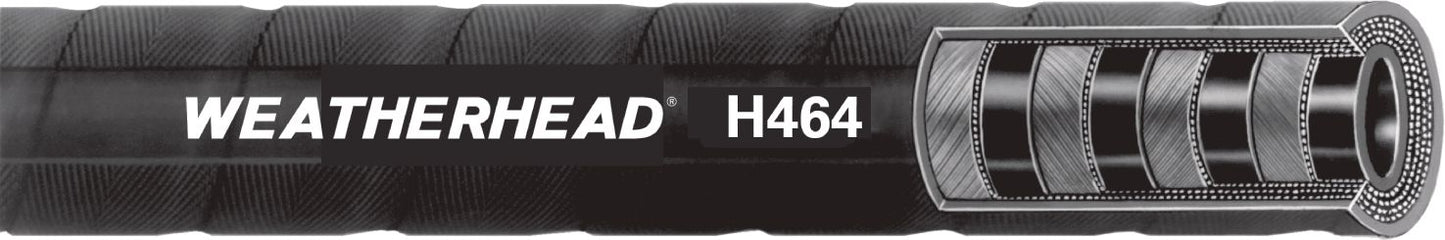

Weatherhead- H464- Rubber - Spiral Plies- 4 Spiral Steel Plies- - 3625 psi -2 (-32)
(Pack of
100)
SKU:20422 32 Item#: 20422 32
• Agency Ratings: EN 856 4SH
• Fittings Certified: 4SP Series
• Agency Approval: MSHA
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 4-spiral steel plies
– Cover: Nitrile
• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for very high-pressure hydraulic lines that experience pulsation during operation
– Recommended for injection molding and drill rig operation
– Abrasion-resistant cover
– Must be crimped on ET4000 Crimper
Frequently Bought Together
Rocker Molding Clip with Sealer Nylon Blue 17mm
Item#: KT13687
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
Item#: P86117
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Item#: P58130
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: EN 856 4SH• Fittings Certified: 4SP Series
• Agency Approval: MSHA
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 4-spiral steel plies
– Cover: Nitrile
• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for very high-pressure hydraulic lines that experience pulsation during operation
– Recommended for injection molding and drill rig operation
– Abrasion-resistant cover
– Must be crimped on ET4000 Crimper
Technical Specifications
| Item#: | 20422 32 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Spiral Plies |
| Category / Performance | Very High Pressure |
| Industry Rating 2 | EN 856 4SH |
| Manufacturer Series Number | H464 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 2 (-32) " |
| Hose O.D. | 2.69 " |
| Working Pressure | 3,625 PSI |
| Burst Pressure | 14,500 PSI |
| Fitting Series | SP Series |
| Bend Radius | 27.56 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 4 Spiral Steel Plies |
| Hose Cover Material | Nitrile |
| Temperature | Normal |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Impulse |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 30.1 lb |
