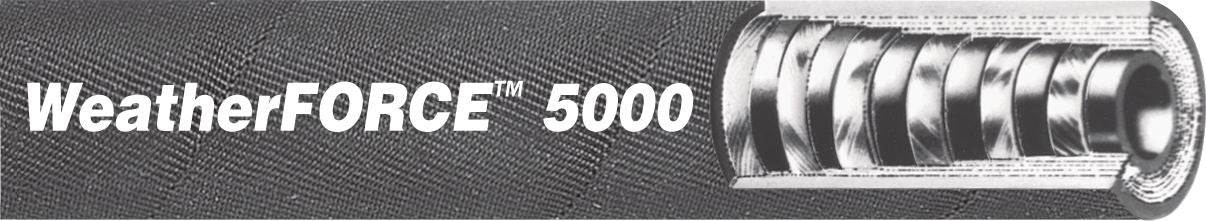

Weatherhead H470 Hydraulic Hose, Vinyl Nitrile, 4-Spiral Steel Plies, 1" ID, 1.52" OD, 50' Length, 5000PSI, SAE 100R13
(Pack of
50)
SKU:20423 16 Item#: 20423 16
• Agency Ratings: SAE 100R13• Fittings Certified: 4SP Series (-8 and -16); 6SP Series (-20 through -32); 470E Series (-12 through -32; Note: requires skiving); 570S Series (-12 through -32; Note: stainless steel for high corrosion resistance)• Agency Approvals: MSHA, Marine Application J1942/1 (-12 through -20)• Construction:– Inner Tube: Nitrile– Reinforcement: 4-spiral steel plies (-8, -12, -16); 6-spiral steel plies (-20, -24, -32)– Cover: Black vinyl nitrile• Temperature Range – Petroleum-based fluids: –40°F to +250°F (–40°C to +121°C)
• Application Notes:
– Used for very high-pressure hydraulic lines that experience pulsation and flexing during operation
– Recommended for construction, mining, farming and high-performance industrial equipment
– Vinyl nitrile cover provides 8 times the abrasion resistance of standard neoprene covers
– All diameters rated at 5,000 PSI working pressure
– 4SP and 6SP Series fittings must be crimped on ET4000 Crimper
Frequently Bought Together
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R13• Fittings Certified: 4SP Series (-8 and -16); 6SP Series (-20 through -32); 470E Series (-12 through -32; Note: requires skiving); 570S Series (-12 through -32; Note: stainless steel for high corrosion resistance)• Agency Approvals: MSHA, Marine Application J1942/1 (-12 through -20)• Construction:– Inner Tube: Nitrile– Reinforcement: 4-spiral steel plies (-8, -12, -16); 6-spiral steel plies (-20, -24, -32)– Cover: Black vinyl nitrile• Temperature Range – Petroleum-based fluids: –40°F to +250°F (–40°C to +121°C)• Application Notes:
– Used for very high-pressure hydraulic lines that experience pulsation and flexing during operation
– Recommended for construction, mining, farming and high-performance industrial equipment
– Vinyl nitrile cover provides 8 times the abrasion resistance of standard neoprene covers
– All diameters rated at 5,000 PSI working pressure
– 4SP and 6SP Series fittings must be crimped on ET4000 Crimper
Technical Specifications
| Item#: | 20423 16 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Spiral Plies |
| Category / Performance | Very High Pressure |
| Industry Rating 1 | SAE 100R13 |
| Industry Rating | MSHA, Marine Application J1942/1 |
| Manufacturer Series Number | H470 |
| Manufacturer Series Name | WeatherFORCE 5000 |
| I.D. | 1 (-16) " |
| Hose O.D. | 1.52 " |
| Working Pressure | 5,000 PSI |
| Burst Pressure | 20,000 PSI |
| Fitting Series | SP Series, 470E Series, 570S Series |
| Bend Radius | 12 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 4 Spiral Steel Plies |
| Hose Cover Material | Vinyl Nitrile |
| Temperature | Normal |
| Color | Black |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Impulse |
| Temperature Range | Petroleum Based Fluids -40F to +250F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 75.0 lb |
