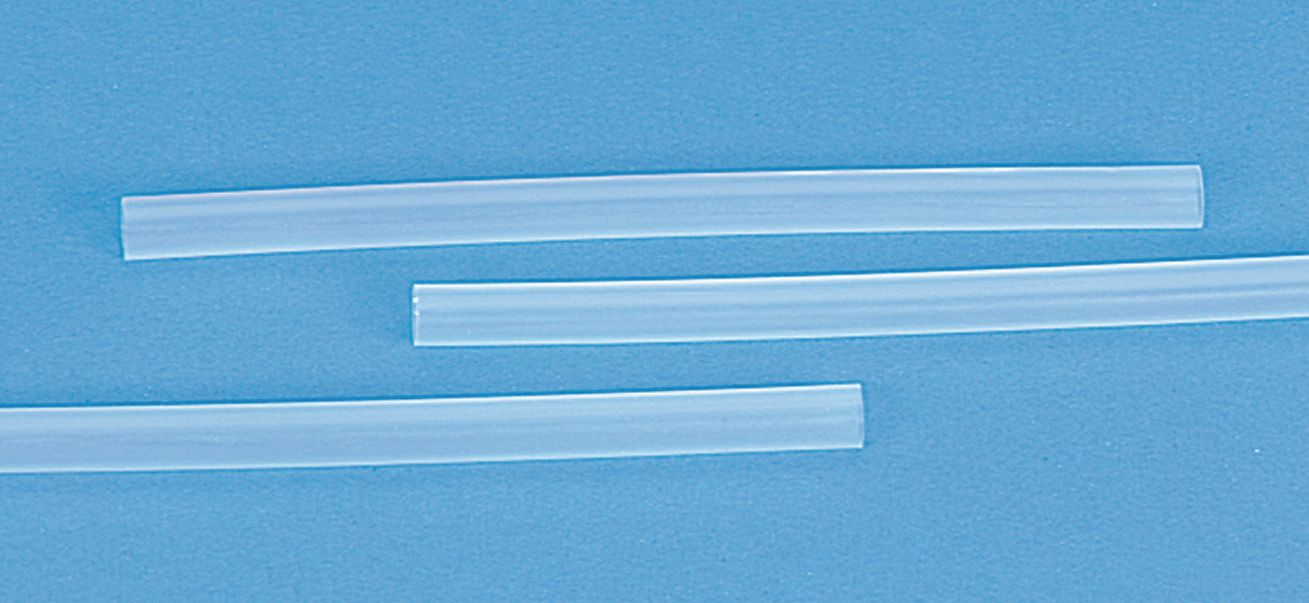

Heat Shrink Tubing, 8 to 2 AWG, Clear, 6" Length, 0.5" ID Before and 0.195" ID After Shrinkage, 2.5:1 Shrink Ratio
(Pack of
6)
SKU:89467 Item#: 89467
• 2.5:1 shrink ratio
• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Clear tubing allows visual inspection of wire and terminal
• Tensile strength: 2,200 PSI
• Elongation: 500%
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Longitudinal change: Less than 5%
• Not flame-retardant
• Secant modulus: 27,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
• Use over wire markers for permanent identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Frequently Bought Together
Butt Connector 22 to 24 AWG Clear
$0.00
Couldn't load pickup availability
Super 33 Vinyl Electrical Tape Black 3/4" x 20'
$0.00
Couldn't load pickup availability
MINI Fuse 10A Red
$0.00
Couldn't load pickup availability
1/8" X 3" Brown Thermapod Sealflex Heat Shrink Tube
$0.00
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 16 to 14 AWG Black
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Electrical Tape Assortment with Dispenser 15Pcs
$0.00
Couldn't load pickup availability
Electrical Tape Assortment with Dispenser 15Pcs
$0.00
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
$0.00
Couldn't load pickup availability
Product Description
• 2.5:1 shrink ratio• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Clear tubing allows visual inspection of wire and terminal
• Tensile strength: 2,200 PSI
• Elongation: 500%
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Longitudinal change: Less than 5%
• Not flame-retardant
• Secant modulus: 27,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
• Use over wire markers for permanent identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 89467 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 8-2 AWG |
| Length | 6 " |
| Color | Clear |
| I.D. Before Shrinkage | .500 " |
| I.D. After Shrinkage | .195 " |
| Shrink Ratio | 2.5 to 1 |
| Wall Thickness After Shrinkage | 0.055 " |
| Dielectric Strength | 1000 V/mm |
| Voltage Rating | 600 V |
| Elongation | 500 % |
| Tensile Strength | 2,200 PSI |
| Heat Shock | 4 hours at 482 degrees F |
| Secant Modulus | 27,000 PSI |
| Longitudinal Change | Less than 5% |
| Approvals | Meets MIL-1-23053/4 Specification |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
