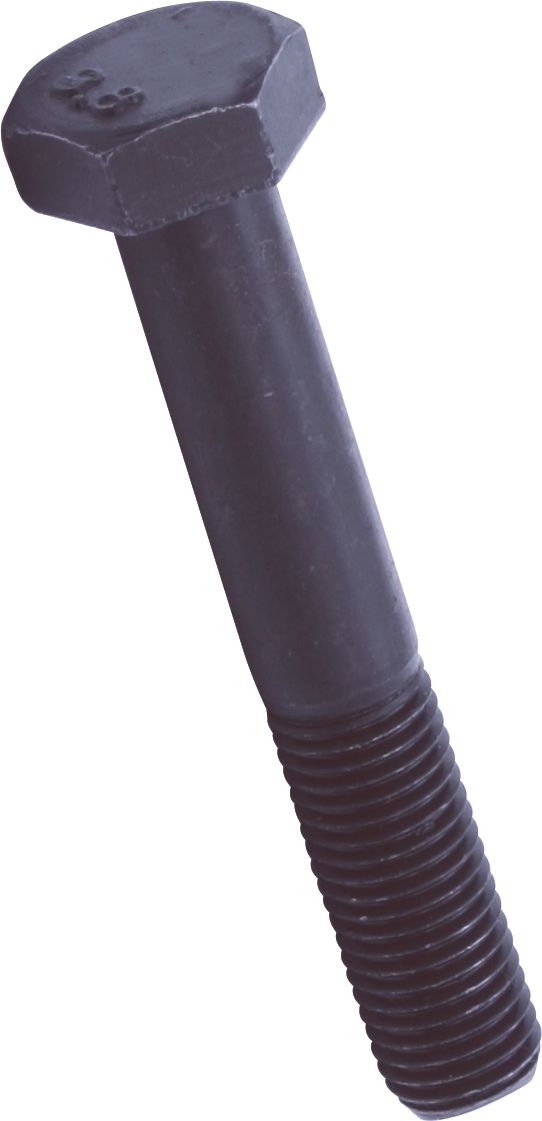

Hex Head Cap Screw, Property Class 8.8, DIN 960, Steel, Plain Finish, M16-1.5 x 55 mm
(Pack of
175)
SKU:1272166 Item#: 1272166
Hex Head Cap Screw, Property Class 8.8, DIN 960, Steel, Plain Finish, M16-1.5 x 55 mm
Read MoreFrequently Bought Together
Front Bumper Trim Panel/Running Board Split Rivet
Item#: KT13527
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: P24082
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Item#: P62445
$0.00
Couldn't load pickup availability
Product Description
Hex Head Cap Screw, Property Class 8.8, DIN 960, Steel, Plain Finish, M16-1.5 x 55 mmTechnical Specifications
| Item#: | 1272166 |
|---|---|
| Style | Standard |
| Diameter | M16 |
| Thread Pitch | 1.5 |
| Thread | Fine |
| Length | 55 mm |
| Type | Hex Cap Screw |
| Across Flats | 24 mm |
| Material | Steel |
| Grade | 8.8 |
| Finish | Plain |
| Tensile Strength | 830 MPa |
| Specifications | DIN 960 |
| Head Style | Hex |
| Head Height | 10 mm |
| Thread Length | Partial |
| UNSPSC #: | 31161501 |
| TAA Compliant: | No |
