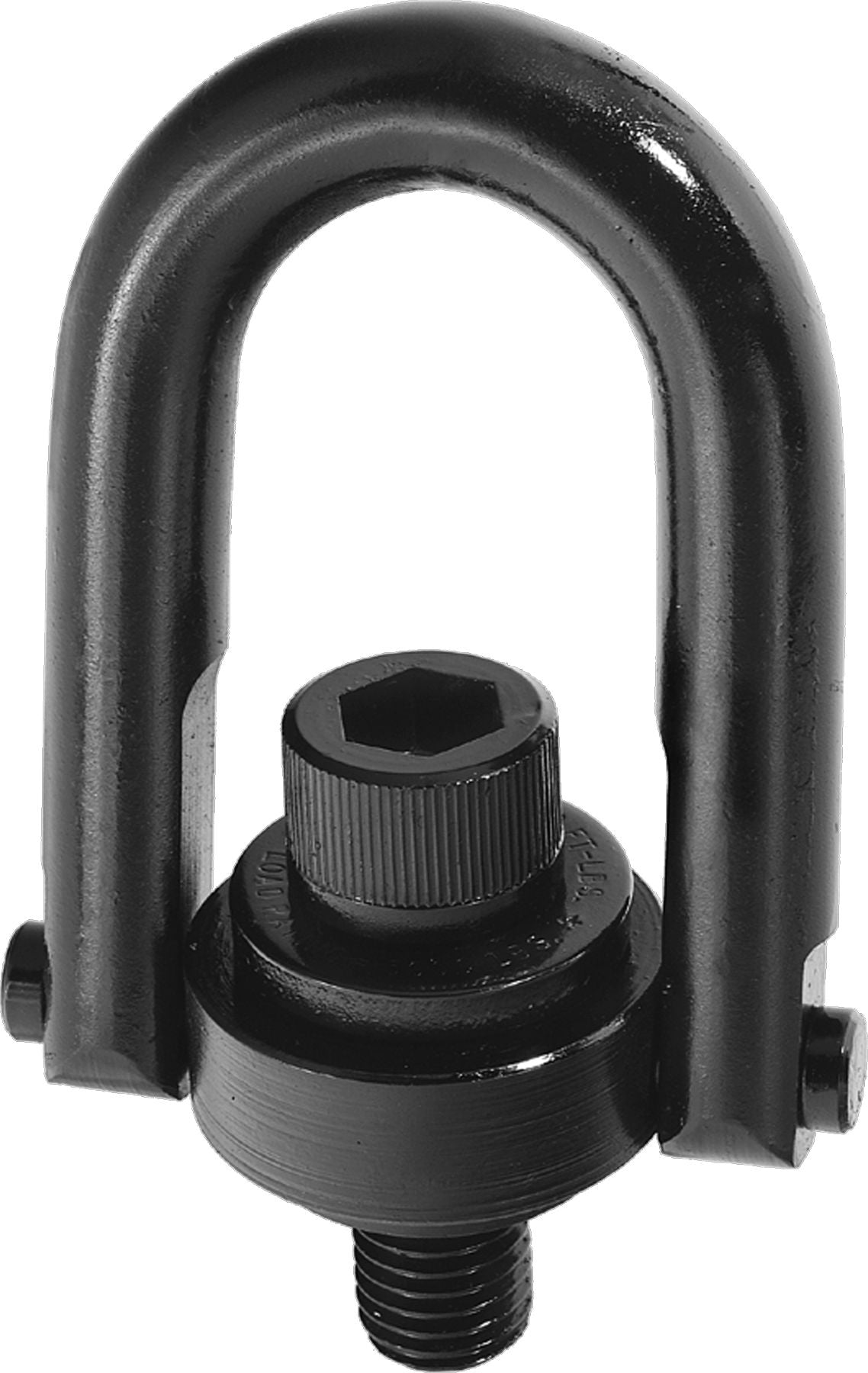

Hoist Ring, Safety Engineered, 24,000 lb Load Limit
(Pack of
1.0)
• Material: High strength 4140 alloy steel
• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
• Each Individually Serial Numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Product Description
• Material: High strength 4140 alloy steel• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
• Each Individually Serial Numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423276 |
|---|---|
| Type | Safety Engineered |
| Thread Size | 1-1/2-6 |
| Thread Length | 2.7 " |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 24,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 800 ft·lbf |

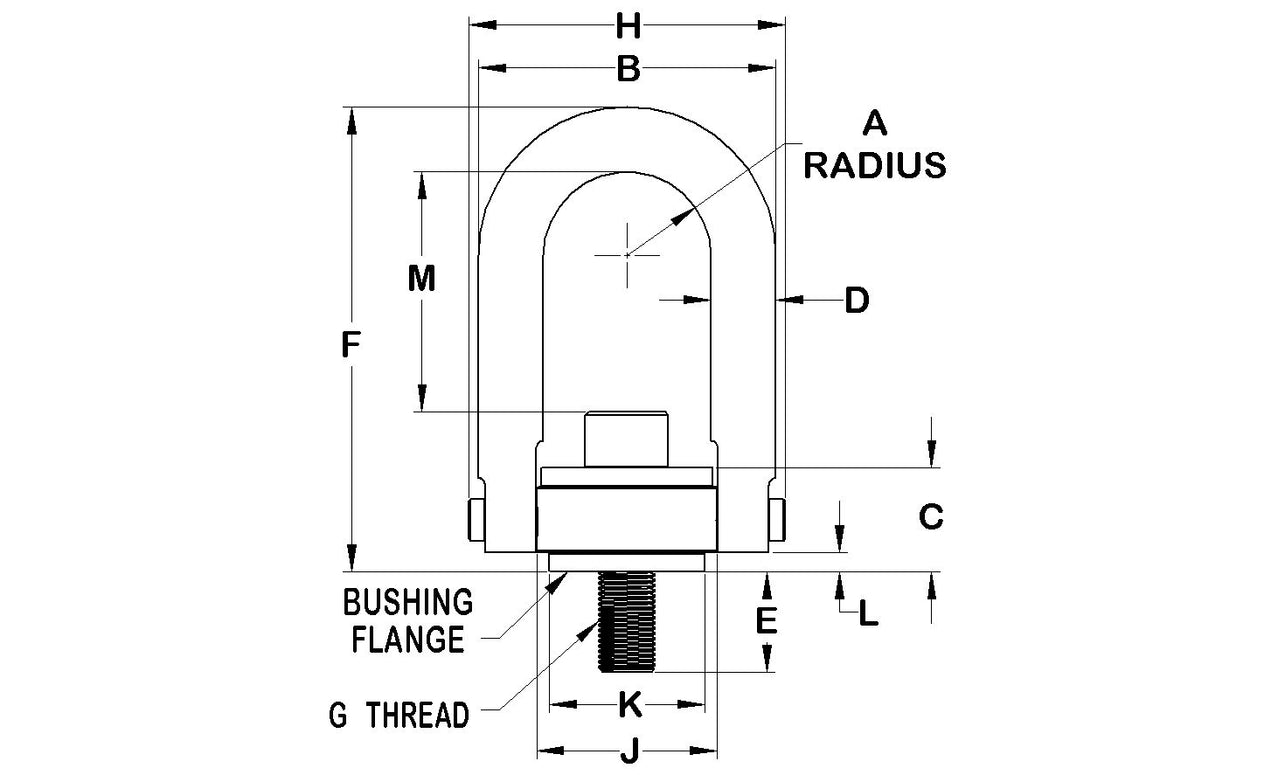

| Dimension A | 2.25 " |
| Dimension B | 8.00 " |
| Dimension C | 2.81 " |
| Dimension D | 1-3/4 " |
| Dimension E | 2.70 " |
| Dimension F | 12.47 " |
| Dimension G | 1-1/2-6 " |
| Dimension H | 8.55 " |
| Dimension J | 4.87 " |
| Dimension K | 4.20 " |
| Dimension L | .47 " |
| Dimension M | 6.41 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
