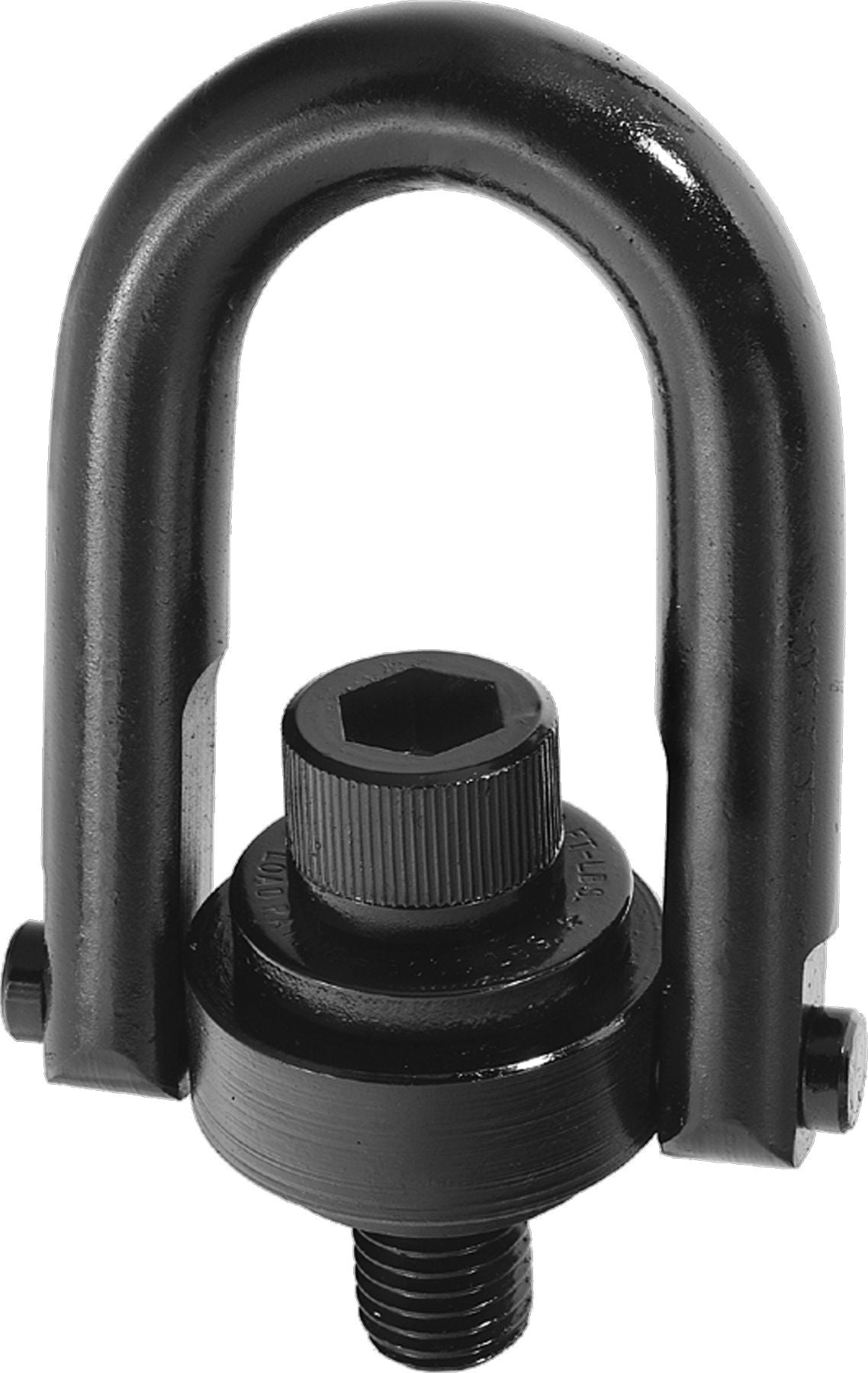

Hoist Ring, Safety Engineered, 5,000 lb Load Limit
(Pack of
1.0)
• Material: High strength 4140 alloy steel
• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
• Each Individually Serial Numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
• Long bar model
Product Description
• Material: High strength 4140 alloy steel• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
• Each Individually Serial Numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
• Long bar model
Technical Specifications
| Item#: | 1423256 |
|---|---|
| Type | Safety Engineered |
| Thread Size | 3/4-10 |
| Thread Length | 1.03 " |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 5,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 100 ft·lbf |
| Dimension A | .88 " |
| Dimension B | 3.25 " |
| Dimension C | 1.22 " |
| Dimension D | 3/4 " |
| Dimension E | 1.03 " |
| Dimension F | 6.72 " |
| Dimension G | 3/4-10 " |
| Dimension H | 3.52 " |
| Dimension J | 1.99 " |
| Dimension K | 1.50 " |
| Dimension L | .16 " |
| Dimension M | 4.00 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
