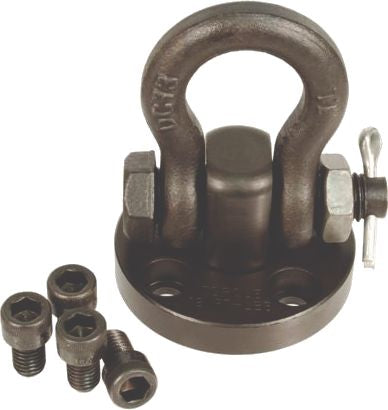

Hoist Ring, Shackle, 2,000 lb Load Limit, 1/4-20 x 1/2" Screw Size
(Pack of
1)
SKU:1423457 Item#: 1423457
The Shackle Hoist Ring is used for OEM applications and permanent mounting on dies, molds, fixtures or equipment. Can be bolted or welded in place.
• Alloy Steel, Black Oxide Finish
• Swivel 360° and Pivot 180° Under Load
• Design Factor = 5.1
• Magnetic Particle Inspected Per ASTM 1444
• Ideal for lifting large and heavy structures
Frequently Bought Together
Front Bumper Drive Rivet Plastic 10mm Hole
Item#: KT14285
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
Item#: P85438
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Item#: P15599
$0.00
Couldn't load pickup availability
Product Description
The Shackle Hoist Ring is used for OEM applications and permanent mounting on dies, molds, fixtures or equipment. Can be bolted or welded in place.• Alloy Steel, Black Oxide Finish
• Swivel 360° and Pivot 180° Under Load
• Design Factor = 5.1
• Magnetic Particle Inspected Per ASTM 1444
• Ideal for lifting large and heavy structures
Technical Specifications
| Item#: | 1423457 |
|---|---|
| Manufacturer Model #: | 36510 |
| Type | Shackle |
| Thread Size | 1/4-20 |
| Screw Length | 1/2 " |
| Number of Screws | 4 |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 2,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Dimension A | 1.03 " |
| Dimension B | 2.96 " |
| Dimension C | 1.78 " |
| Dimension D | 3/8 " |
| Dimension E | 1.43 " |
| Dimension F | 0.40 " |
| Dimension G | 0.91 " |
| Dimension H | 1.56 " |
| Dimension I | 2.10 " |
| Dimension J | 2.17 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
