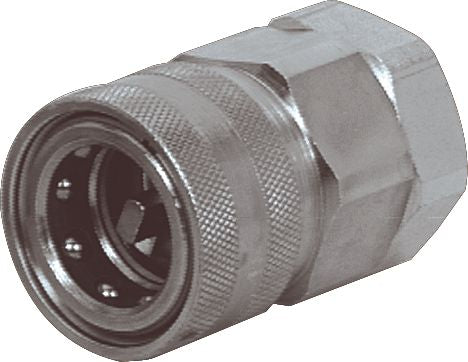

Hydraulic Quick Connect Coupler, Steel, Snap-Tite H/IH, 1/2" x 1/2-14, Female NPTF, 2.13" Length, 4000PSI
(Pack of
1)
SKU:53617 Item#: 53617
Double shut-off design for high-pressure applications, H/IH Couplers and Nipples provide excellent performance and are completely interchangeable with Snap-tite H Series and Faster TNV.
• Also fully interchangeable with MIL-C-51234 couplers and nipples• Connection and disconnection require manual sleeve retraction
Dixon: T-Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Metric Female Flareless Sleeve 733204215
$0.00
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 1/2 x 1/16"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Hydraulic Dust Plug for Coupler Aluminum 1"
$0.00
Couldn't load pickup availability
Hydraulic Dust Plug for Coupler Aluminum 2"
$0.00
Couldn't load pickup availability
3TM3
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
Double shut-off design for high-pressure applications, H/IH Couplers and Nipples provide excellent performance and are completely interchangeable with Snap-tite H Series and Faster TNV.• Also fully interchangeable with MIL-C-51234 couplers and nipples• Connection and disconnection require manual sleeve retraction
Dixon: T-Series
Technical Specifications
| Item#: | 53617 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Snap-Tite H/IH |
| Standards | MIL-C-51234 |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 9,600 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | 9 Balls |
| Flow | 13 gal/min |
| Length | 2.13 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 4,000 PSI |
| Hex Size | 1-3/16 " |
| Maximum Diameter | 1.36 " |
| Coupled Length | 3.40 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.46 lb |
