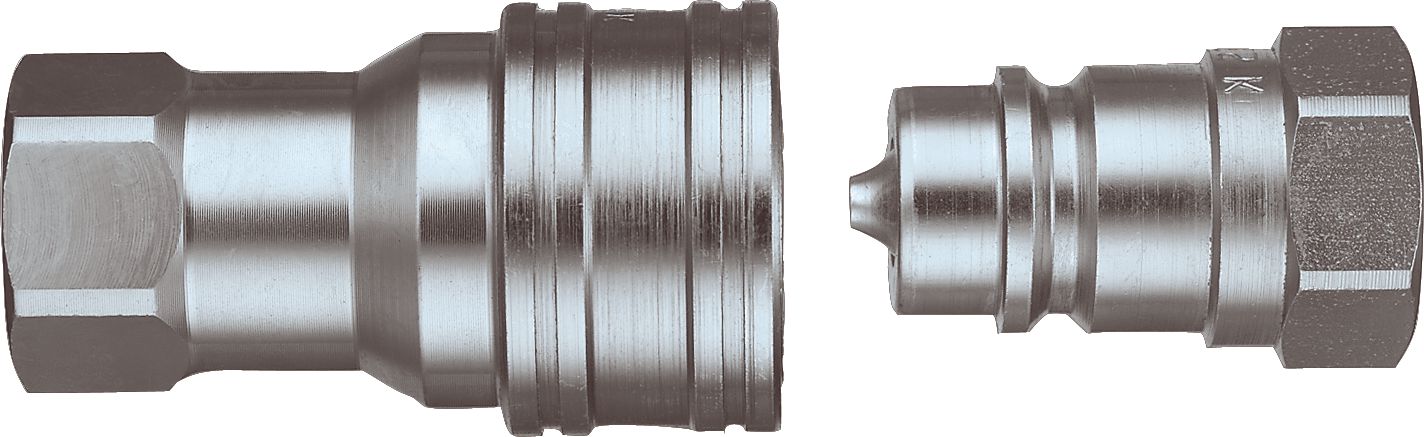

Hydraulic Quick Connect Coupler, Steel, ISO 7241 Series 'A' 1/4" x 1/4-18, Female NPTF, 1.76" Length, 5000PSI
(Pack of
1)
SKU:55900 Item#: 55900
These quality-manufactured couplers and nipples provide excellent performance, outstanding flow characteristics, little pressure drop, and quick connect and disconnect. Best for use with high-pressure hose, and for hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Made of solid steel bar stock, they meet the most rugged performance standards.
• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• All units incorporate a Teflon® back-up ring to withstand dynamic impulse
• Specially tested to the most rugged industry standards
• Stainless steel springs
• Hardened nipples for maximum service life
• Corrosion-resistant finish
Dixon: K-Series
Parker: 6600 Series
Snap-tite: 61 Series
Faster: ANV Series
Hansen: IA Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Spacer Ring Black
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 0.617 x 0.769"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 9/16 x 3/32"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
$0.00
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
$0.00
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 1" FPT X 3/4"Plug
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Replacement Seal 1/2"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Product Description
These quality-manufactured couplers and nipples provide excellent performance, outstanding flow characteristics, little pressure drop, and quick connect and disconnect. Best for use with high-pressure hose, and for hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Made of solid steel bar stock, they meet the most rugged performance standards.• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• All units incorporate a Teflon® back-up ring to withstand dynamic impulse
• Specially tested to the most rugged industry standards
• Stainless steel springs
• Hardened nipples for maximum service life
• Corrosion-resistant finish
Dixon: K-Series
Parker: 6600 Series
Snap-tite: 61 Series
Faster: ANV Series
Hansen: IA Series
Technical Specifications
| Item#: | 55900 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |

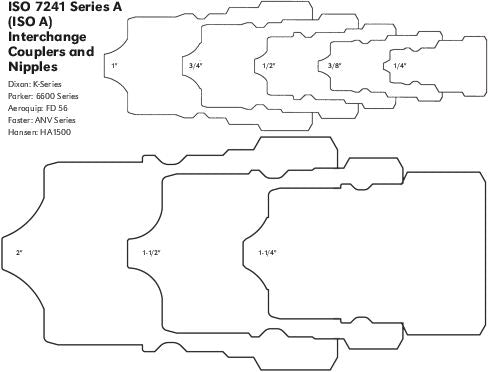

| Style | ISO 7241 Series 'A' |
| Standards | ANSI/NFPA B93.113M-A |
| Body Size | 1/4 " |
| Thread Size | 1/4-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 18,270 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | 6 Balls |
| Flow | 2.9 gal/min |
| Length | 1.76 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 5,000 PSI |
| Hex Size | 3/4 " |
| Maximum Diameter | 1 " |
| Coupled Length | 2-21/32 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
