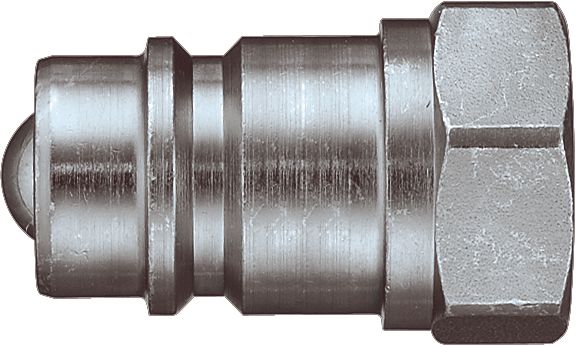

Hydraulic Quick Connect Nipple 1" x 1-11-1/2
(Pack of
1)
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.
• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
ET500 Mini Crimper Starter Assortment
Couldn't load pickup availability
Vacuum Hose Connector Straight 1/4 x 1/4"
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 3/4" x 3/4-14
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
Product Description
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Technical Specifications
| Item#: | 28627 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | ISO 5675 |
| Body Size | 1 " |
| Thread Size | 1-11-1/2 |
| Thread Style | Female NPT |
| Burst Pressure | 11,600 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Carbon Steel |
| Flow | 48 gal/min |
| Length | 2.60 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 2,900 PSI |
| Hex Size | 1.61 " |
| Maximum Diameter | 1.76 " |
| Coupled Length | 5.22 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.72 lb |
