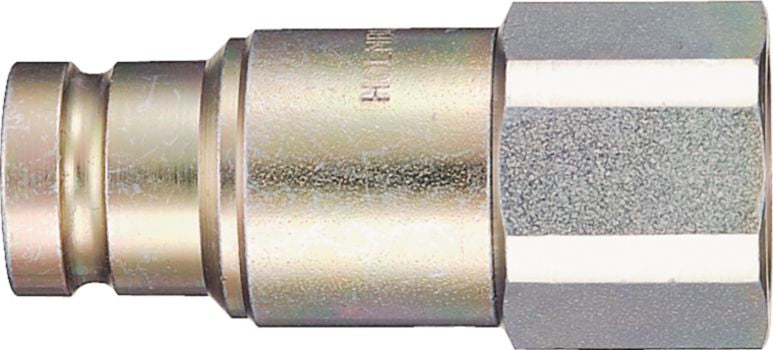

Hydraulic Quick Connect Nipple Steel 1/2" x 3/4-14
(Pack of
1)
Keep hydraulic connections clear in dirty conditions with this Quick Connect Nipple. The flat face design wipes clean easily and operates successfully in applications involving high pressure pulses. Heavy-duty locking sleeve provides greater strength and prevents accidental disconnection, while non-spill design guards against fluid loss during connection and disconnection. Ideal for use in agriculture, construction, mobile equipment, general industrial, mining and nuclear equipment. To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
• Zinc-plated steel body
• PTFE and nitrile rubber seals
• Conforms to ISO 16028 Standards
• Operating temperature range: –4°F to +212°F (–20°C to +100°C)
• Meets or exceeds HTMA requirements
Dixon: HT-Series
To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
3TR18CT Hydraulic Thermoplastic Hose 0.85" x 50'
Couldn't load pickup availability
3TR8N Hydraulic Thermoplastic Hose 0.90" x 50'
Couldn't load pickup availability
3TR8N Hydraulic Thermoplastic Hose 0.59" x 50'
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Hex Nipple Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 3/4" x 3/4-14
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1" x 1-11-1/2
Couldn't load pickup availability
Hydraulic Dust Cap for Nipple PVC/Rubber 3/4"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Product Description
Keep hydraulic connections clear in dirty conditions with this Quick Connect Nipple. The flat face design wipes clean easily and operates successfully in applications involving high pressure pulses. Heavy-duty locking sleeve provides greater strength and prevents accidental disconnection, while non-spill design guards against fluid loss during connection and disconnection. Ideal for use in agriculture, construction, mobile equipment, general industrial, mining and nuclear equipment. To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.• Zinc-plated steel body
• PTFE and nitrile rubber seals
• Conforms to ISO 16028 Standards
• Operating temperature range: –4°F to +212°F (–20°C to +100°C)
• Meets or exceeds HTMA requirements
Dixon: HT-Series
To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
Technical Specifications
| Item#: | 29977 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | ISO 16028 |
| Standards | ISO 16028 |
| Body Size | 12.5mm (1/2") |
| Thread Size | 3/4-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,500 PSI |
| Seal Material | Nitrile |
| Material | Steel |
| Flow | 28 gal/min |
| Length | 2.78 " |
| Temperature Range | -40 to 212 F |
| Working Pressure | 3,625 PSI |
| Hex Size | 1.42 " |
| Maximum Diameter | 1.52 " |
| Coupled Length | 5.28 " |
| Tip Diameter | 0.9655 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.61 lb |
