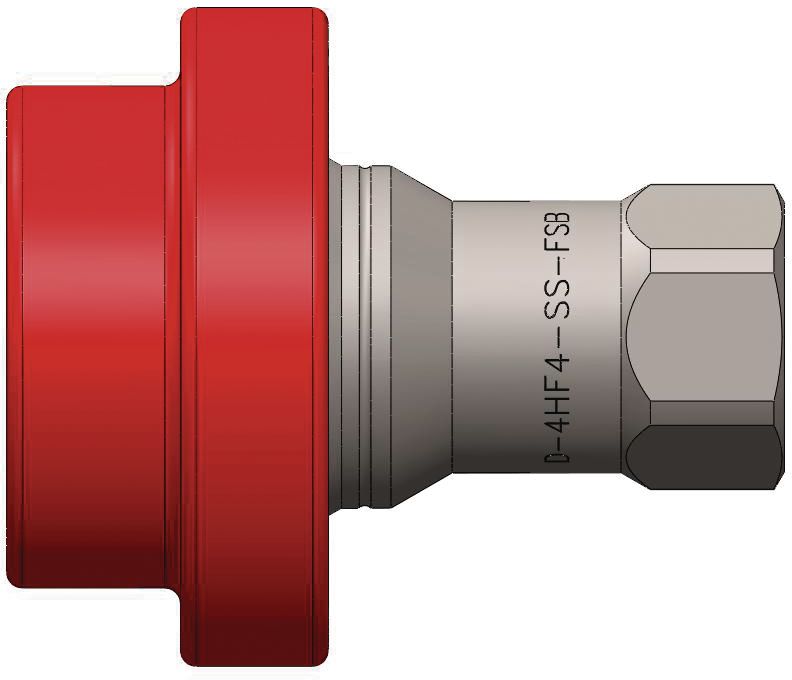

Hydraulic Quick Coupling Coupler ISO 7241 Series 'B' 1/2x 1/2-14 Female NPTF
(Pack of
1)
SKU:21019 Item#: 21019
• Food grade Viton seals are FDA approved for food service applications
• Flanged coupler sleeves will prevent damage when dropped, and are easier to use with gloves on
• Material options: 303 Stainless Steel and 316 Stainless Steel fulfill the requirements of various food service applications
• Fully compliant with ISO 7241 Series B
Dixon: Series HFG
Parker: 60 Series
Aeroquip: FD45
Frequently Bought Together
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: KT11397
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
Item#: 1500739
$0.00
Couldn't load pickup availability
Product Description
• Food grade Viton seals are FDA approved for food service applications• Flanged coupler sleeves will prevent damage when dropped, and are easier to use with gloves on
• Material options: 303 Stainless Steel and 316 Stainless Steel fulfill the requirements of various food service applications
• Fully compliant with ISO 7241 Series B
Dixon: Series HFG
Parker: 60 Series
Aeroquip: FD45
Technical Specifications
| Item#: | 21019 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 7241 Series 'B' |
| Standards | ANSI/NFPA B93.113M-B |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 22,000 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | 316 Stainless Steel |
| Locking Mechanism | 9 Balls |
| Flow | 15 gal/min |
| Length | 2.86 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 3,500 PSI |
| Hex Size | 1-1/16 " |
| Maximum Diameter | 2.52 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.95 lb |
