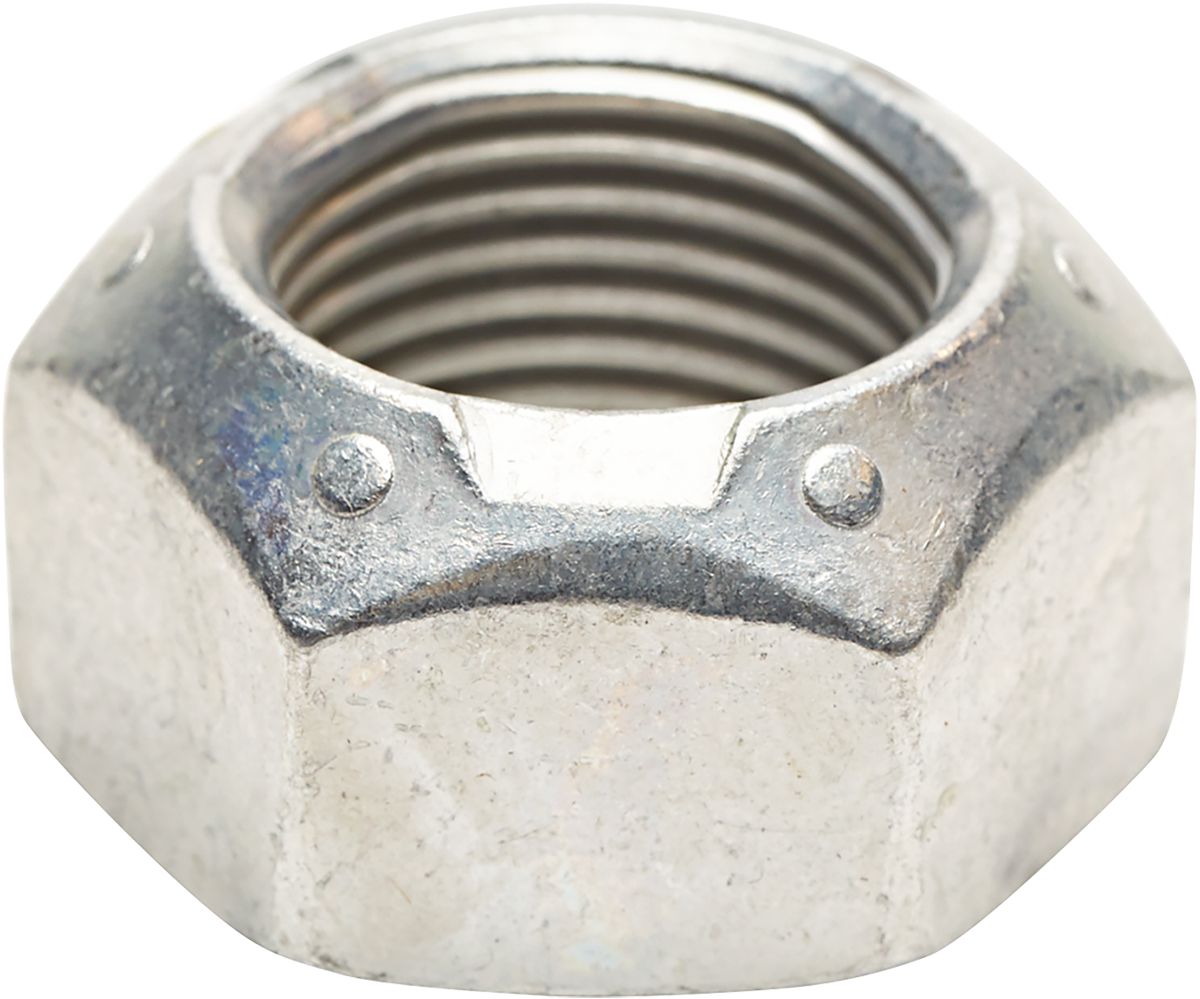

IFI 100/107 Top Locknut Grade C 3/4-16
(Pack of
25)
The Top Locknut Grade C delivers uncompromising reliability when your high-stress applications demand it most. This heat-treated, vibration-resistant locknut maintains its grip through severe conditions that would cause standard nuts to fail, ensuring your critical assemblies stay secure even under extreme vibration and repeated stress cycles. Engineered specifically for Grade 8 applications, it retains its locking torque through a minimum of five reapplications while meeting stringent IFI and ANSI specifications with 150,000 PSI minimum proof strength. Whether you're working on heavy machinery, automotive assemblies, or industrial equipment, this Grade C locknut provides the dependable hold that keeps your work running smoothly and safely.
• Heat-treated for matched strength
• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #8-18 x 1/2"
Couldn't load pickup availability
DIN 985 Locknut with Nylon Insert A2 SS M12-1.75
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 1-1/4-7
Couldn't load pickup availability
DIN 985 Locknut with Nylon Insert M8-1.25
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade A 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Steel M4-0.7
Couldn't load pickup availability
DIN 982 High Locknut with Nylon Insert M8-1.25
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Product Description
The Top Locknut Grade C delivers uncompromising reliability when your high-stress applications demand it most. This heat-treated, vibration-resistant locknut maintains its grip through severe conditions that would cause standard nuts to fail, ensuring your critical assemblies stay secure even under extreme vibration and repeated stress cycles. Engineered specifically for Grade 8 applications, it retains its locking torque through a minimum of five reapplications while meeting stringent IFI and ANSI specifications with 150,000 PSI minimum proof strength. Whether you're working on heavy machinery, automotive assemblies, or industrial equipment, this Grade C locknut provides the dependable hold that keeps your work running smoothly and safely.• Heat-treated for matched strength
• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.
Technical Specifications
| Item#: | 80946 |
|---|---|
| Diameter | 3/4 " |
| Thread Pitch | 16 |
| Grade | C |
| Finish | Zinc/Wax |
| Type | Top Lock Nut |
| Material | Alloy Steel |
| Thickness | 0.827 " |
| Across Flats | 1-1/8 " |
| Thread | Fine |
| Size | 3/4-16 |
| Specifications | IFI 100/107 |
| Maximum Temperature | 450º F |
| Proof | 150,000 PSI |
| UNSPSC #: | 31161716 |
| TAA Compliant: | No |
| Weight: | 2.58 lb |
