Home Fasteners Locknut Tri-Lobular Thick Grade C 5/16-18
Fasteners

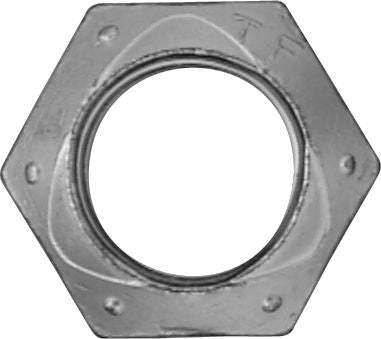

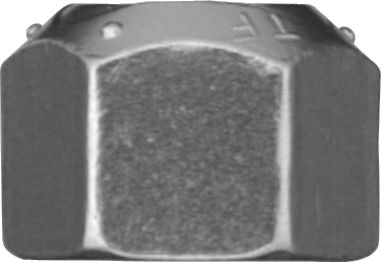

Tri-Lobular Thick Locknut, Grade C, Alloy Steel, Zinc/Wax Finish, Coarse Thread, 21/64" Thickness, 1/2" Across Flats, 5/16-18
(Pack of 50)

Item#: 53696

Tru-Torq®

• Specifically designed for use with Lawson’s Tru-Torq® fastening system
• Tri-lobular locking feature for even pressure distribution and superior engageability
• Cadmium-plated with Friction Control
• 180,000 PSI minimum proof-load strength
• Meets or exceeds SAE J995
• Conforms to ANSI B18.2.2
NOTE: Not recommended for use above 450°F (232°C).

Read More
Check Availability

Catalog page#: 11-10

Frequently Bought Together


Hex Flange Bolt Grade 10.9 M6-1 x 25mm

Item#: 28681

Serrated Hex Flange Nut Alloy Steel M10-1.25

Item#: 28701

Hex Flange Nut Grade 10 Steel M10-1.5

Item#: 59769

SAE J995C Locknut with Nylon Insert Grade A 1/2-13

Item#: 305

Locknut with Nylon Insert Grade A 5/16-18

Item#: 302
No product placeholder

Flange Locknut with Nylon Insert Grade F 1/4-20

Item#: 1153649

Hex Flange Nut Grade 8 Steel M10-1.5

Item#: 57130

Hex Nut Grade 8 Steel M5-0.8

Item#: 4301

Hex Nut Grade 8 Steel 1/4-20

Item#: FA68400

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm

Item#: 55607

Self-Drilling Screw Hex Head 1/4-14 x 1-1/4"

Item#: 85241

Front Fender Push-Type Retainer Nylon 20mm

Item#: P24082

Fender Bumper Shield Retainer 11/16"

Item#: P62445

Front Bumper Drive Rivet Plastic 10mm Hole

Item#: KT14285

Product Description

• Specifically designed for use with Lawson’s Tru-Torq® fastening system
• Tri-lobular locking feature for even pressure distribution and superior engageability
• Cadmium-plated with Friction Control
• 180,000 PSI minimum proof-load strength
• Meets or exceeds SAE J995
• Conforms to ANSI B18.2.2
NOTE: Not recommended for use above 450°F (232°C).

Technical Specifications

Item#: 53696
Diameter 5/16 "
Thread Pitch 18
Grade C
Finish Zinc/Wax
Type Tri-Lobular Lock Nut
Material Alloy Steel
Thickness 21/64 "
Across Flats 1/2 "
Thread Coarse
Specifications IFI 100/107 and ANSI B18.2.2
Maximum Temperature 450º F
Proof 180,000 PSI
Quantity Per Package 50.0000
UNSPSC #: 31161716
TAA Compliant: Yes
Weight: 0.6 lb
