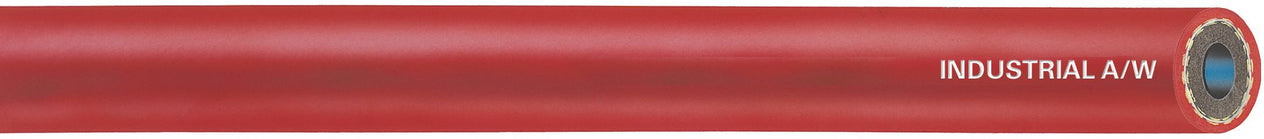

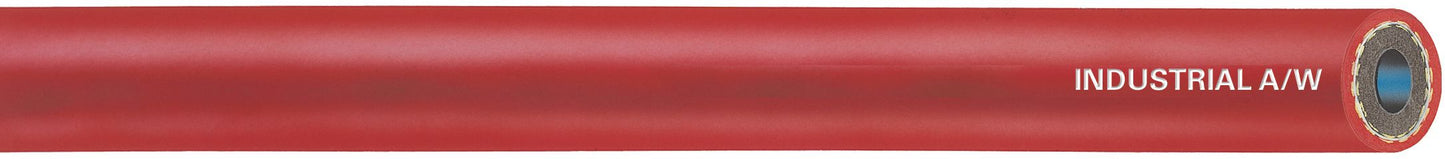

Industrial A/W Red Air/Multipurpose EPDM 2-Braid EPDM 250 psi 1-1/4 (-20)
(Pack of
300)
SKU:41342 20 Item#: 41342 20
• Advantages:
– Age, heat- and ozone-resistant
– Limited oil resistance
– Excellent coupling retention for impulse applications
• Agency Ratings: N/A
• Fittings Certified:
– Z-Series
– Inserted Hose Ends: Standard Hose Barbs, Claw-Type Quick Acting, Long Shank Inserts
• Agency Approvals: N/A
• Construction:
– Inner Tube: EPDM
– Reinforcement: Fiber, two braid
– Cover: EPDM
• Color: Red
• Temperature Range: –40°F to +180°F (–40°C to +82°C)
• Application Notes:
– Used for spraying and conveying water-based liquid fertilizers and pesticides
– Used for transfer of air and water
• Markets:
– Agriculture
– Assembly/manufacturers
– Construction
– Food industry
– Metalworking
– Mining
– Oil industry
– Paper/pulp
– Shipbuilding
– Fleet/service station
Frequently Bought Together
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Product Description
• Advantages:– Age, heat- and ozone-resistant
– Limited oil resistance
– Excellent coupling retention for impulse applications
• Agency Ratings: N/A
• Fittings Certified:
– Z-Series
– Inserted Hose Ends: Standard Hose Barbs, Claw-Type Quick Acting, Long Shank Inserts
• Agency Approvals: N/A
• Construction:
– Inner Tube: EPDM
– Reinforcement: Fiber, two braid
– Cover: EPDM
• Color: Red
• Temperature Range: –40°F to +180°F (–40°C to +82°C)
• Application Notes:
– Used for spraying and conveying water-based liquid fertilizers and pesticides
– Used for transfer of air and water
• Markets:
– Agriculture
– Assembly/manufacturers
– Construction
– Food industry
– Metalworking
– Mining
– Oil industry
– Paper/pulp
– Shipbuilding
– Fleet/service station
Technical Specifications
| Item#: | 41342 20 |
|---|---|
| Manufacturer Model #: | H181220-300R |
| Type | Air and Multipurpose |
| Manufacturer Series Number | H1812 |
| Manufacturer Series Name | Industrial A/W |
| Dash Size | -20 |
| Working Pressure | 250 PSI |
| Hose I.D. | 1-1/4 " |
| Hose O.D. | 1-3/4 " |
| Inner Tube Material | EPDM |
| Hose Reinforcement | 2-Braid |
| Hose Cover Material | EPDM |
| Temperature Range | -40F to +180 F |
| Color | Red |
| Quantity Per Package | 300.0000 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
