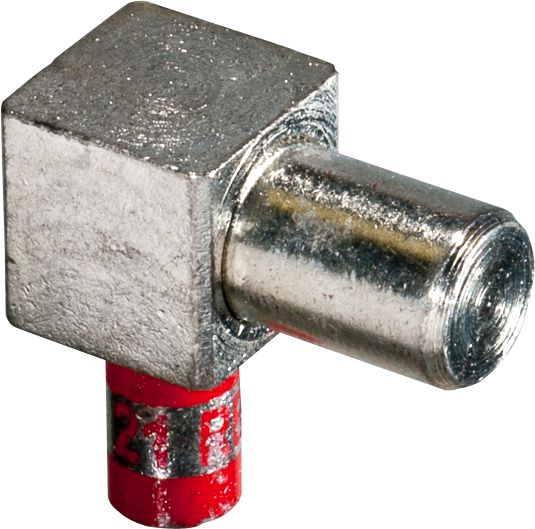

Industrial Connector- 8 Gauge, Male, Red
(Pack of
5)
SKU:94381 Item#: 94381
• Easy, error-free installation – eliminates bolting, taping and loose connections
• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Frequently Bought Together
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
• Easy, error-free installation – eliminates bolting, taping and loose connections• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Technical Specifications
| Item#: | 94381 |
|---|---|
| Type | Industrial Connectors |
| Connector Type | Male |
| Wire Gauge | 8 AWG |
| Color | Red |
| Body Size | 2 |
| Style | Pigtails |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.33 lb |
