Home Fittings Instrumentation Elbow 90° 1/4" x 1/4-18
Fittings

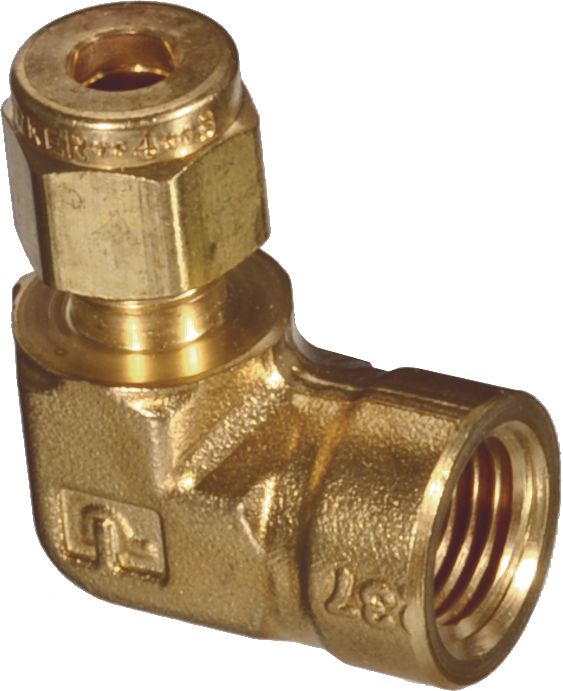

Instrumentation Elbow 90° 1/4" x 1/4-18
(Pack of 1.0)

Kent Automotive

• Precision tube fittings for the most demanding process control and instrumentation applications
• Positive leak-free seal after repeated assembly
• Heat code traceability on 316 Stainless Steel
• Fully interchangeable with Swagelok® and Parker A-LOK®
• Double ferrule design
• Manufactured to ANSI B31.1 and B31.3 Standards
• ASTM F1387 certified

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Hose Barb Brass 3/8" x 3/8-18

Item#: 50562

Hose Barb Brass 1/4" x 7/16-20

Item#: 50568

Hose Barb Brass 3/8" x 1/4-18

Item#: 50561

Ergonomic Blow Gun Rubber Tip

Item#: 99943

Push-Button Air Coupler Steel 1/4" x 1/4-18

Item#: KT14094

4T Series Crimp-On Hose End 1/4" x 1/4-18

Item#: 1692579

Instrumentation Male Run Tee 1/4 x 3/8 x 1/4"

Item#: 1343495

Instrumentation Elbow 90° 1/2" x 1/2-14

Item#: 59856

Instrumentation Fitting 316 Stainless Steel

Item#: 1593034
No product placeholder

Barb-Tite™ Instrumentation Elbow 5/16 x 1/4"

Item#: 1181628

Barb-Lok Hose End 1/2" (-8) x 3/4-16 (-8)

Item#: 97509

Barb-Lok Hose End 1/4" (-4) x 1/2-20 (-5)

Item#: 97514

Wheel Flare Molding Clip with Sealer Nylon

Item#: KT13688

Sheet Metal Drill Bit Alloy Steel 1/8"

Item#: P67286

Miniature Incandescent Bulb 12V 2CP

Item#: P22266

Product Description

• Precision tube fittings for the most demanding process control and instrumentation applications
• Positive leak-free seal after repeated assembly
• Heat code traceability on 316 Stainless Steel
• Fully interchangeable with Swagelok® and Parker A-LOK®
• Double ferrule design
• Manufactured to ANSI B31.1 and B31.3 Standards
• ASTM F1387 certified

Technical Specifications

Item#: 59796
Tube Size 1/4 "
Description Instrumentation Fitting
Fitting Type Compression
Configuration Female Elbow
Angle 90 °
Connection Type A x B Tube x Female NPT
Fitting Dimension A 1/4 "
Fitting Dimension B 1/4 "
Material Brass
Swagelok Number 400-8-4
Thread Style Female NPT
Thread Size 1/4 "
UNSPSC #: 27131600
TAA Compliant: No
Weight: 0.19 lb
