Home Fittings Instrumentation Elbow 90° 1/8" x 1/8-27
Fittings

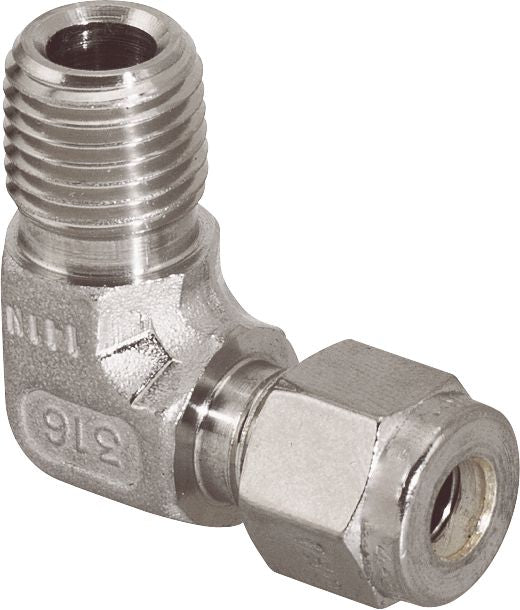

Instrumentation Elbow, 90°, Stainless Steel, 1/8" x 1/8-27, Tube x Male NPT
(Pack of 1)

Kent Automotive

• Precision tube fittings for the most demanding process control and instrumentation applications
• Positive leak-free seal after repeated assembly
• Heat code traceability on 316 Stainless Steel
• Fully interchangeable with Swagelok® and Parker A-LOK®
• Double ferrule design
• Manufactured to ANSI B31.1 and B31.3 Standards
• ASTM F1387 certified

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Frequently Bought Together


Hose Barb Brass 1/2" x 1/4-18

Item#: 50548

Hose Barb Brass 5/16" x 1/4-18

Item#: 98315

Combination Nipple Steel 3/4-14 x 3/4"

Item#: 60821

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11951

Rubber Air Hose Assembly 3/8" x 25'

Item#: 1690570

AG-Lite Rubber Water Hose Lead In 3/4" x 6'

Item#: 1690522

Instrumentation Elbow 90° 1/4" x 1/4-18

Item#: 59789

Instrumentation Connector 3/8" x 3/8-18

Item#: 59833

Instrumentation Elbow 90° 1/4" x 1/8-27

Item#: 59788

Barb-Lok Hose End 3/8" (-6) x 1/4-18 (-4)

Item#: 50644
No product placeholder

Barb-Tite™ Instrumentation Elbow 3/8 x 1/4"

Item#: 1185586

Barb-Lok Hose End 1/4" (-4) x 5/8-18 (-6)

Item#: 55033

Front/Rear Bumper Push-Type Retainer Nylon 20mm

Item#: KT13321

Hex Head Sheet Metal Screw with 16mm Washer Steel

Item#: P58130

Bumper Drive Rivet Plastic 10mm Hole

Item#: P85437

Product Description

• Precision tube fittings for the most demanding process control and instrumentation applications
• Positive leak-free seal after repeated assembly
• Heat code traceability on 316 Stainless Steel
• Fully interchangeable with Swagelok® and Parker A-LOK®
• Double ferrule design
• Manufactured to ANSI B31.1 and B31.3 Standards
• ASTM F1387 certified

Technical Specifications

Item#: 59850
Tube Size 1/8 "
Description Instrumentation Fitting
Fitting Type Compression
Configuration Male Elbow
Angle 90 °
Connection Type A x B Tube x Male NPT
Fitting Dimension A 1/8 "
Fitting Dimension B 1/8-27
Material Stainless Steel
Swagelok Number 200-2-2
Thread Style Male NPT
Thread Size 1/8 "
UNSPSC #: 27131600
TAA Compliant: No
Weight: 0.09 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
