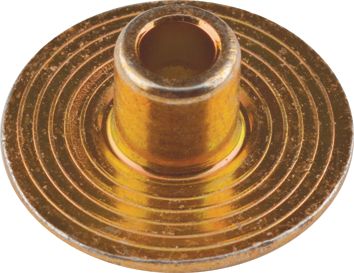

Lockbolt Collar Standard Flange Aluminum 3/16"
(Pack of
100.0)
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.
Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-125
Frequently Bought Together
Self-Drilling Screw Hex Head #8-18 x 1/2"
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M6
Couldn't load pickup availability
Hammerlock Cotter Pin Kit 140Pcs
Couldn't load pickup availability
HuckBolt® Hucktainer® Rivet Collar 3/8"
Couldn't load pickup availability
HuckBolt® C50L® Rivet Collar Carbon Steel 5/8"
Couldn't load pickup availability
Replacement Jaw for 491 Riveting Tool
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 1/8"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Product Description
Lockbolt fasteners have a unique, lock-groove design that ensures a secure installation. The Lockbolt is placed through the work and the collar is placed over the end of the Lockbolt. Using the proper tool the two are fastened together and the Lockbolt is broken off flush with the collar. When the core pin is flush with the collar, the fastener has been properly installed. A clean installation is ensured and can easily be confirmed with a quick visual inspection.Multi-Grip Lockbolts have an extensive grip range that provides considerable scope and flexibility for many light-duty and heavy-duty assembly applications. They are an ideal fastener for applications where material thicknesses vary. Reduced stockholding provides significant cost effective benefits over bolt/nut, solid rivet and other traditional fastening methods. Installation is simple, quick, and requires minimal training.
Technical Specifications
| Item#: | 1543683 |
|---|---|
| Series | Multi-Grip |
| Diameter | 3/16 " |
| Style | Standard |
| Material | Aluminum |
| Hole Diameter | 0.189 – 0.195 " |
| Body Diameter | 0.307 – 0.313 " |
| Flange Diameter | 0.365 – 0.385 " |
| Flange Thickness | 0.040 – 0.052 " |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.1323 lb |
