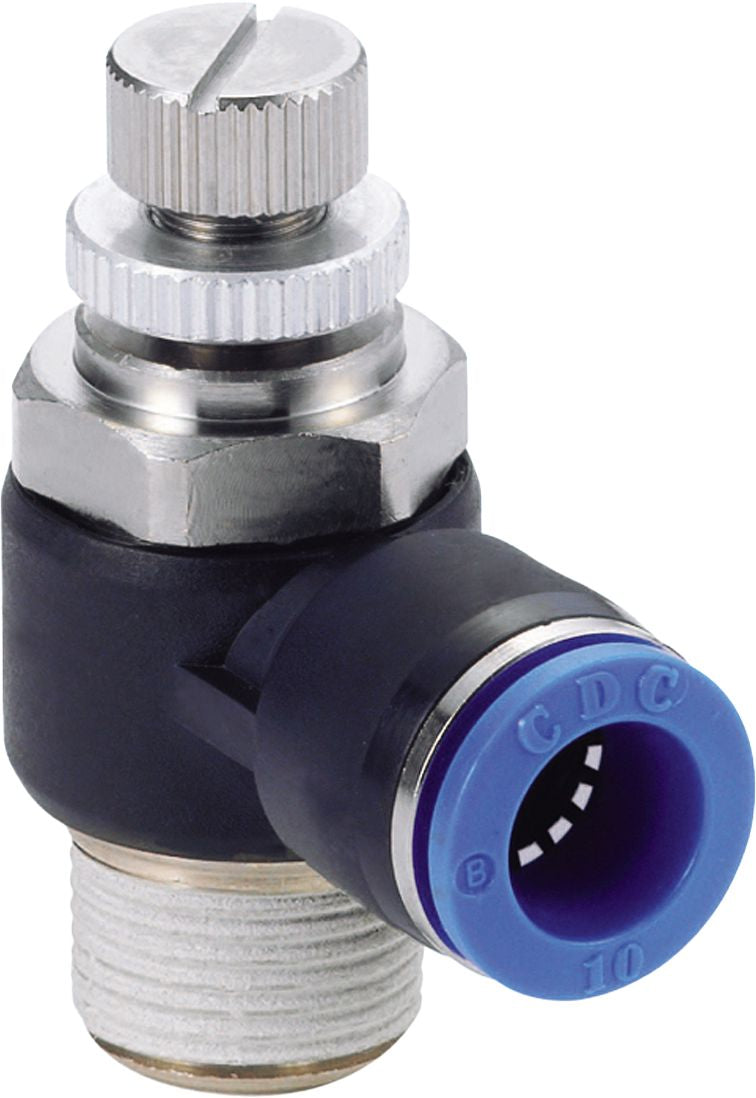

Compact Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 12mm x 1/2", Tube x BSPP, 150 PSI Working Pressure
(Pack of
1)
SKU:62250 Item#: 62250
Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Elbow Brass 90° 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Meter Out Flow Control Regulator, PBT Resin, 4mm x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel Plated Brass, 1/2 x 1/2"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, PBT Resin, 10 x 10mm x 1/4"
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 62250 |
|---|---|
| Style | Flow Control Regulator |
| Configuration | Compact Meter Out |
| Tube Size | 12 mm |
| Thread Size | G1/2 " |
| Thread Style | BSPP |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 24 mm |
| Locknut Wrench Size | 17 mm |
| Thread Length | 7.5 mm |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.13 lb |
