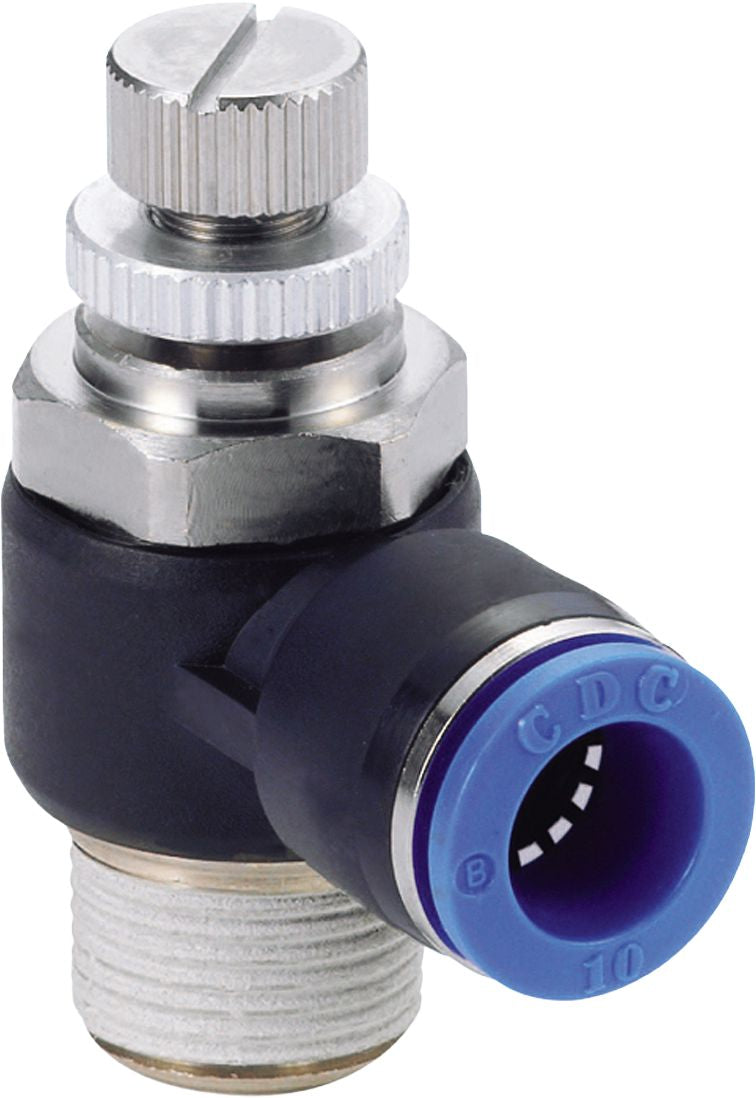

Compact Meter Out Flow Control Regulator, Nickel-Plated Brass/PBT Resin, 5/32 x 1/8", Tube x NPT, 150 PSI Working Pressure
(Pack of
1)
SKU:62224 Item#: 62224
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/8 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Bulkhead Union, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2"
$0.00
Couldn't load pickup availability
Push-to-Connect Bulkhead Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Pipe Nipple Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Street Tee Brass 1/4-18 x 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Ergonomic Blow Gun Rubber Tip
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel Plated Brass, 10mm x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel Plated Brass, 6mm x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow, PBT Resin, 10mm x 1/4"
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 62224 |
|---|---|
| Style | Flow Control Regulator |
| Configuration | Compact Meter Out |
| Tube Size | 5/32 " |
| Thread Size | 1/8 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | .63 " |
| Locknut Wrench Size | .39 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.055 lb |
