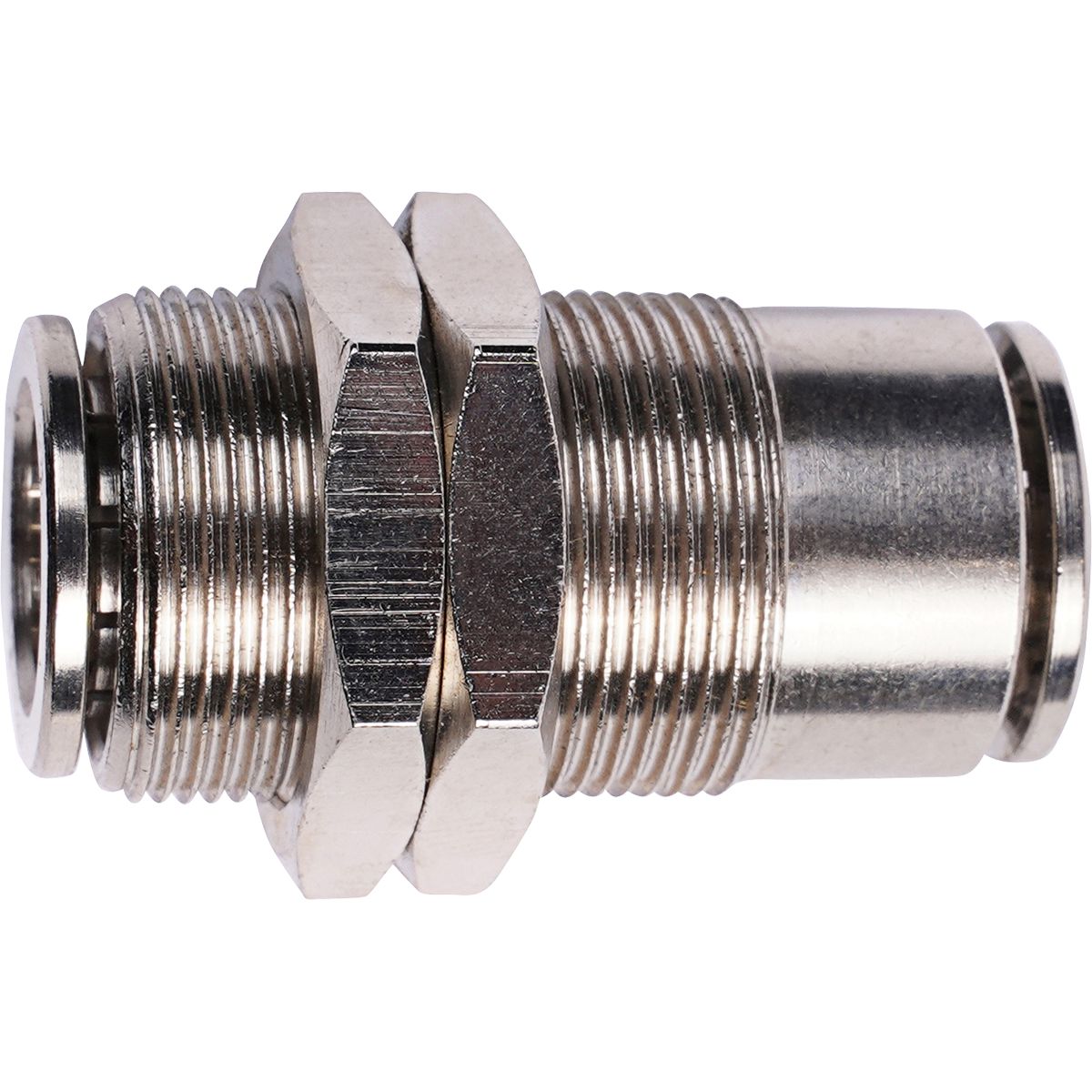

Metric bulkhead brass union push-on connector 6mm tube
(Pack of
1)
SKU:DY41737006 Item#: DY41737006
• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.Technical Specifications
| Item#: | DY41737006 |
|---|---|
| Style | Push-to-Connect |
| Configuration | Bulkhead Union |
| Tube Size | 6 mm |
| Thread Size | M14x1 |
| Thread Style | Metric |
| Material | Nickel-Plated Brass |
| Wrench Size | 17 mm |
| Bulkhead Nut Size | 17 mm |
| Panel Hole Diameter | 15 mm |
| Panel Thickness | 10.5 mm |
| Mounting Hole Diameter | 15 mm |
| Working Pressure | Up To Maximum Working Pressure of Tubing Being Used |
| Temperature Range | -40 to +200 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.065 lb |
