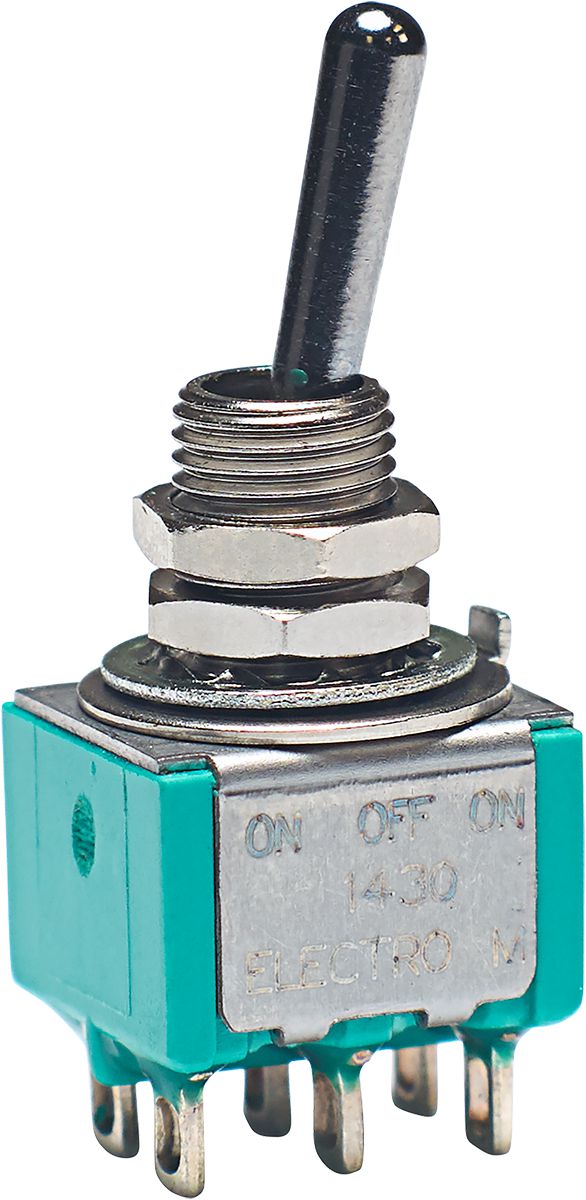

Home Electrical Miniature Toggle Switch DPDT 6A 125V On-Off-On
Electrical

Miniature Toggle Switch, Double Pole Double Throw, 6 Amps, 125 Volts, 6 Blade Terminal, On-Off-On
(Pack of 2)

Kent Automotive

• Silver switching contacts and rockers
• Stainless steel frame
• Solder blade termination
• Direct panel mount – 1/4" mounting stem dia.
• 6A at 125V AC; 3A at 250V AC; 6A at 28V DC
• Developed to meet the needs of miniaturized circuits

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Frequently Bought Together


Energizer® AA Alkaline Battery 1.5V

Item#: 1145804

MINI Fuse 15A Blue

Item#: P66002M01

Alkaline Battery Headlamp

Item#: 1650020

Fender Splash Shield Retainer Nylon 20mm

Item#: P53958

Shroud Insulating Button Nylon 11/16"

Item#: P21462

Metric Indented Hex Head Bolt with 17mm Washer

Item#: P59732

Rocker Switch SPST, 14V DC 20A , 28V DC 10A, Red LED Round, On-Off

Item#: DY41120043

Disconnect Switch SPST 36VDC On/Off

Item#: 57514

Push-Pull Switch with Fuse SPST 20A 12V Off-On

Item#: 11166

Sealed Toggle Switch SPDT 10A 125V

Item#: 1145934

Sealed Toggle Switch SPST 18A 125V On-Off-On

Item#: 1145962

Locking Connector 2 Pole 3 Wire 20A 250V

Item#: 99635

Product Description

• Silver switching contacts and rockers
• Stainless steel frame
• Solder blade termination
• Direct panel mount – 1/4" mounting stem dia.
• 6A at 125V AC; 3A at 250V AC; 6A at 28V DC
• Developed to meet the needs of miniaturized circuits

Technical Specifications

Item#: 90379
Style Mini Toggle Switches
Pole Double
Throw Double
Terminal Connection 6 Blades
Switch Positions On - Off - On
Mounting Stem Diameter 1/4 "
Electrical Rating Amps at Given Voltage (AC or DC Current) 6A at 125V AC; 3A at 250V AC; 6A at 28V DC
Approvals UL
Type Switches
UNSPSC #: 39122200
TAA Compliant: Yes
Weight: 0.05 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
