Home Fasteners Multi-Grip Rivet 120° Countersunk Head 1/8"
Fasteners

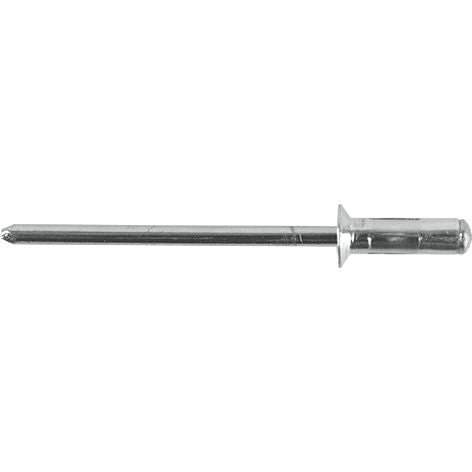

Multi-Grip Rivet, 120° Countersunk Head, Aluminum Body/Steel Mandrel, 1/8" Diameter, 0.093 to 0.25" Grip Range, 0.383" Body Length
(Pack of 100)

Item#: 1543584

Kent Automotive

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Read More
Check Availability

Catalog page#: 11-114

Frequently Bought Together


SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88435

Hex Cap Screw Property Class 8.8 M6-1 x 16mm

Item#: 27330

DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm

Item#: 59411

Blind Rivet Large Flange Head Aluminum 1/8"

Item#: P57356

Multi-Grip Rivet Dome Head Steel 1/8"

Item#: 1543590

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1543592

Structural Rivet Internal Lock Steel 1/4"

Item#: 90481

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1967

Structural Rivet Internal Lock Steel 3/16"

Item#: 1543647

Front Bumper Specialty Nut Steel M4.2-1.41

Item#: 1420584

Shield Push-Type Retainer with Metal Insert

Item#: P85253

Rocker Panel Molding Clip Nylon White 12 x 20mm

Item#: P85316

Product Description

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Technical Specifications

Item#: 1543584
Type Multi-Grip
Head Style 120° Countersunk Head
Material Body / Mandrel Aluminum/Steel
Diameter 1/8 "
Grip Range 0.093 – 0.250 "
Hole Size 0.129 – 0.138 "
Head Diameter 0.209 "
Head Height 0.029 "
Body Length 0.383 "
Shear Strength 165 lb
Tensile Strength 230 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.2205 lb
